Bottom-Sheet Nudge with CleverTap

This guide walks you through creating a bottom-sheet Nudge in the Digia Engage Dashboard, connecting it to CleverTap, and testing it on a device. By the end, you should have:

• a bottom-sheet Nudge designed and active in Digia Engage
• a CleverTap In-App campaign that points to that Digia campaign
• a test device where you can trigger and verify the experience

A Nudge is an overlay shown above the app screen. Use a bottom sheet when you want the message to feel contextual and lightweight, such as:

• a limited-time offer after a product is added to cart
• a feature announcement on app launch
• a reminder to complete setup
• a rating or feedback prompt

info

Prefer a quick visual walkthrough first? Watch Creating Native Nudge Campaigns Without App Releases.

Before You Start

Make sure you have:

• Access to the correct Digia Engage project.
• Access to the matching CleverTap project.
• Your app must already be integrated with Digia Engage and CleverTap. Share the CleverTap developer integration guide with your app team if this setup is not complete yet.
• The audience and trigger event decided in CleverTap, for example Product Added To Cart.
• If you plan to target specific app screens, review usable pages in Component Registry.
• Any content ready: headline, body copy, image URL, CTA text, deep link, coupon code, or offer details.
• A test profile or test segment in CleverTap so you can verify the campaign before launch.

If you plan to personalize the Nudge, decide the variables before you build. For example, a campaign might use:

Variable	Example value	Used for
coupon	SAVE20	Button copy or offer copy
first_name	Aarav	Personalized greeting
expiry_time	4 PM	Urgency text

Create a New Campaign

Go to Campaigns and choose New Campaign.

Use a name that your team can recognize later, such as:

Cart Offer Bottom Sheet - July

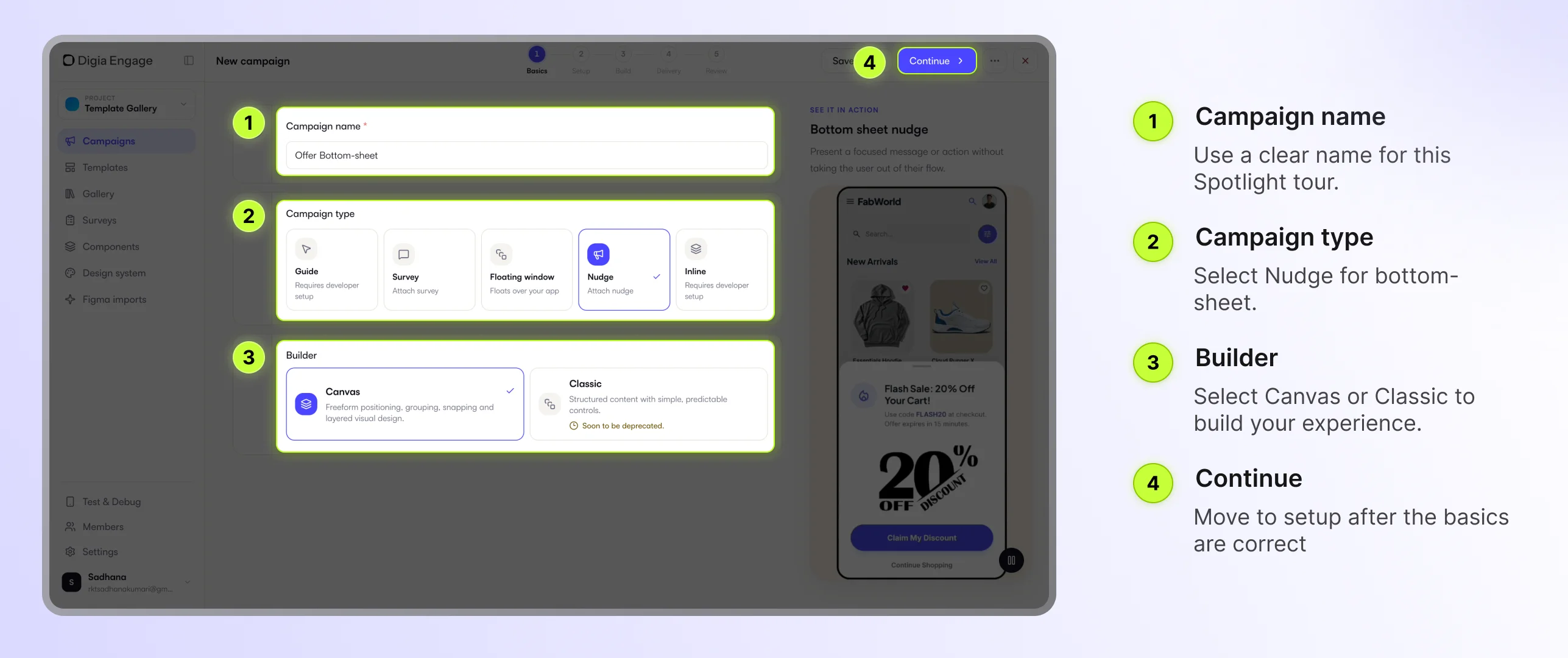

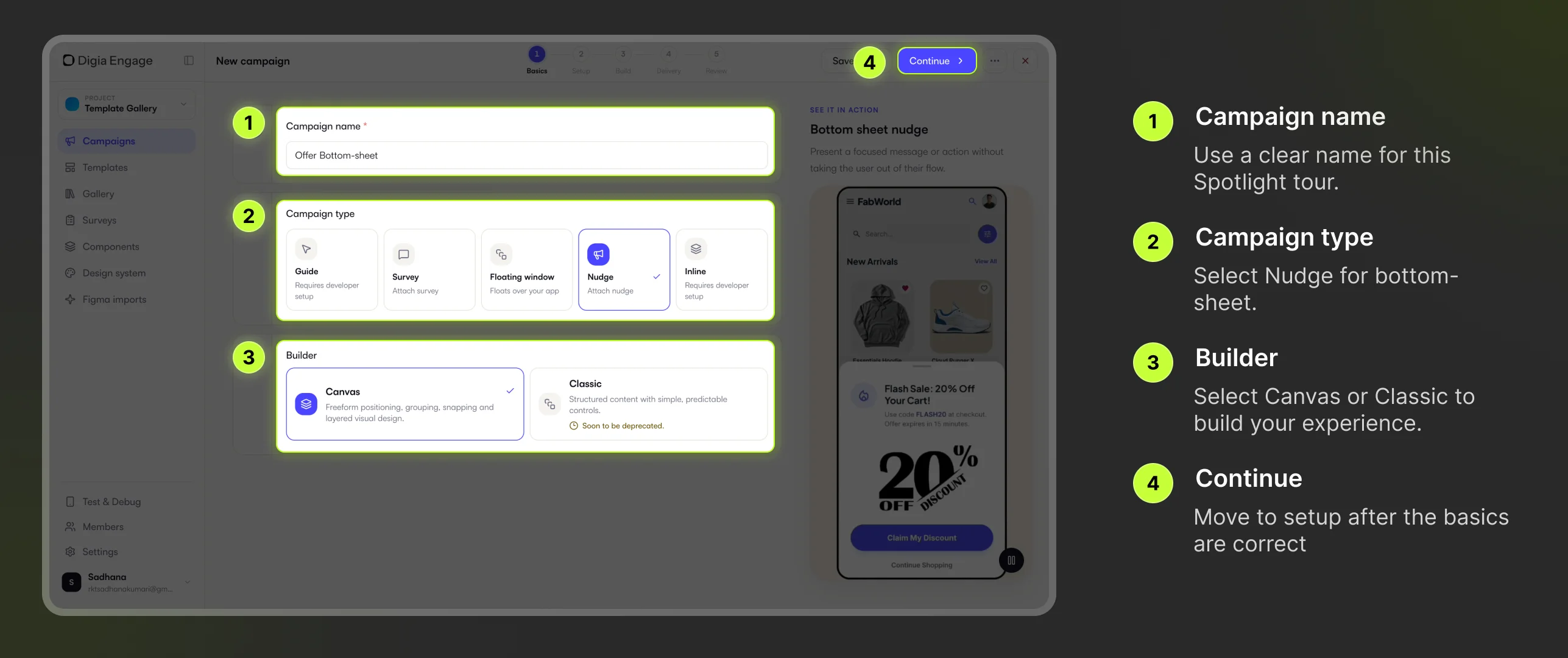

On the Basics step, enter the campaign name, select Nudge, and choose your builder (Canvas or Classic). Digia creates a campaign key from the name. You will use this key in CleverTap later.

Select Nudge as the campaign type before continuing.

Add Variables, If Needed

The Setup step lets you start from a template or build from scratch, configure target screens, and declare variables that the UI will use.

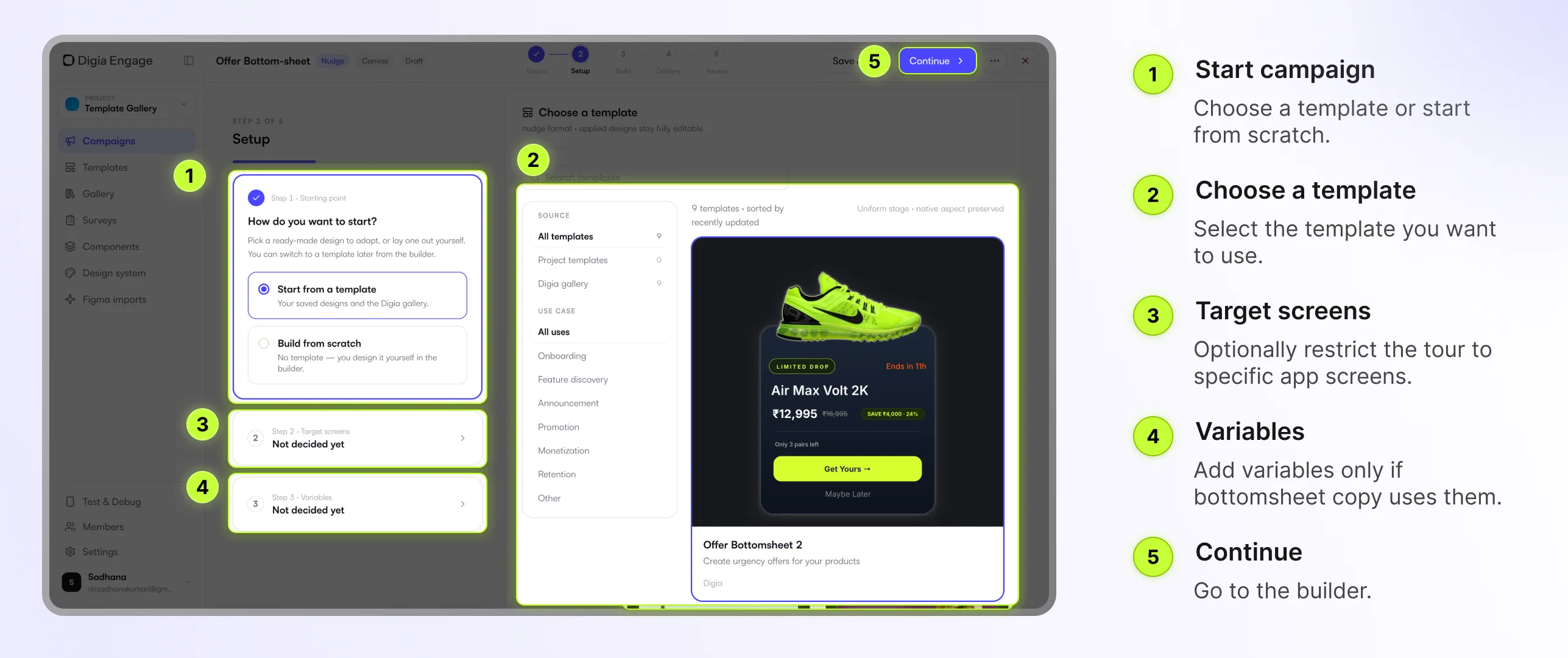

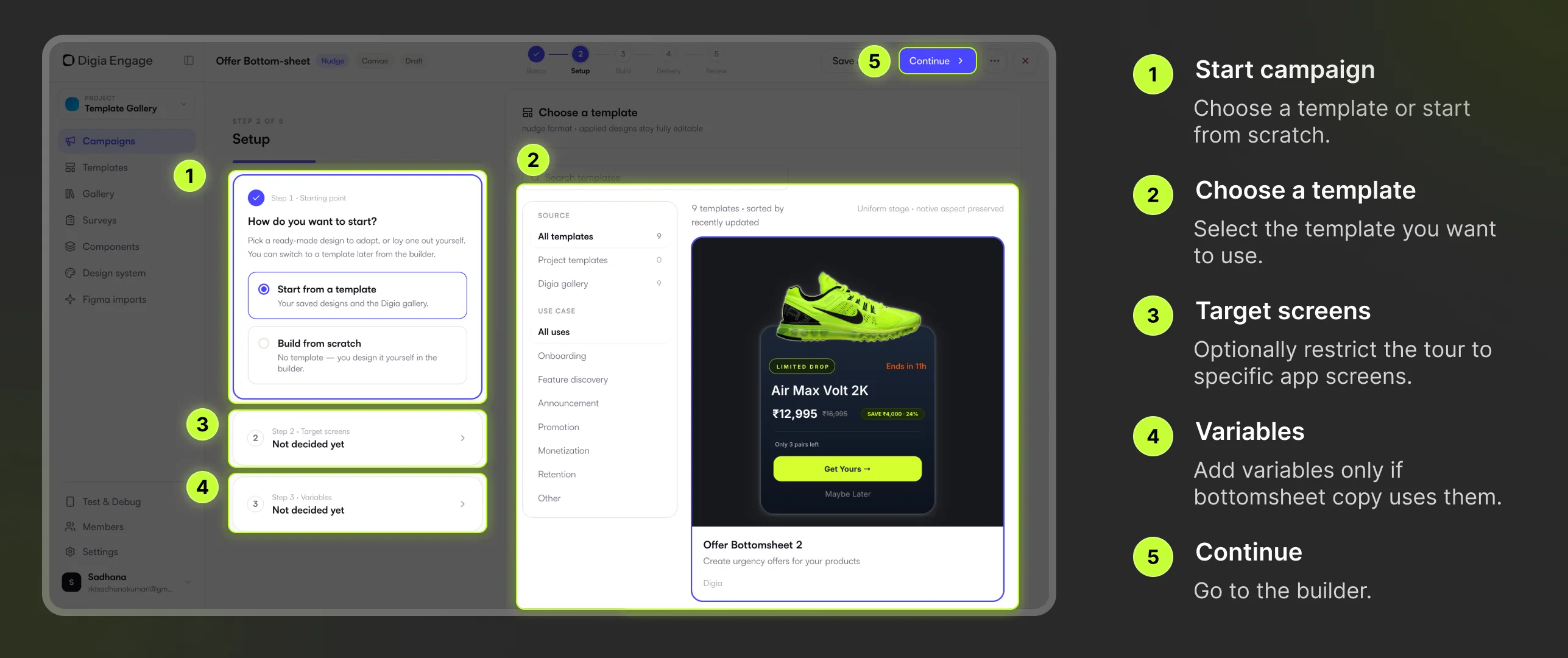

Choose a template or start from scratch, and configure target screens and variables in Setup.

If your Nudge uses dynamic values, add them on this step before you design the UI.

Examples:

In the Nudge copy	Variable name
Use {{coupon}} at checkout	coupon
Offer ends at {{expiry_time}}	expiry_time
Hi {{first_name}}, this is for you	first_name

Variables are optional. If every piece of text is fixed, you can skip this part.

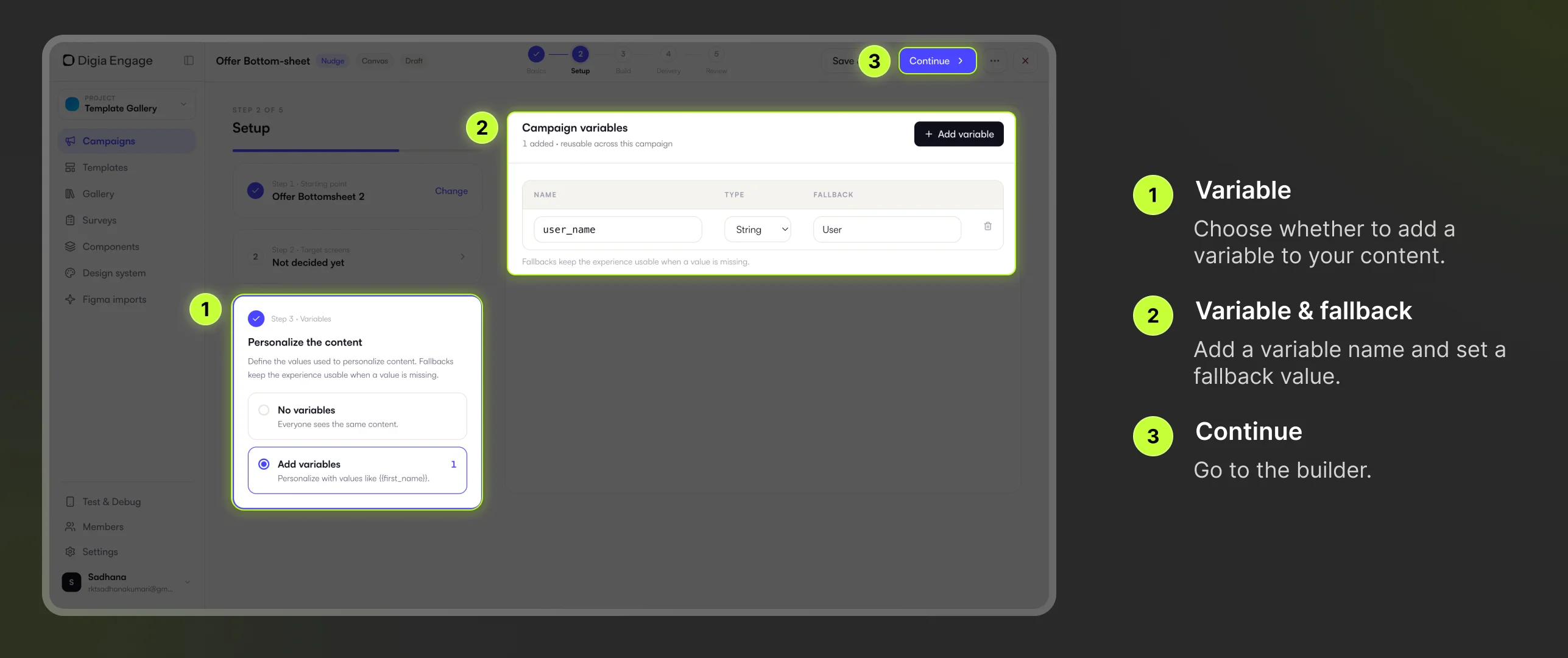

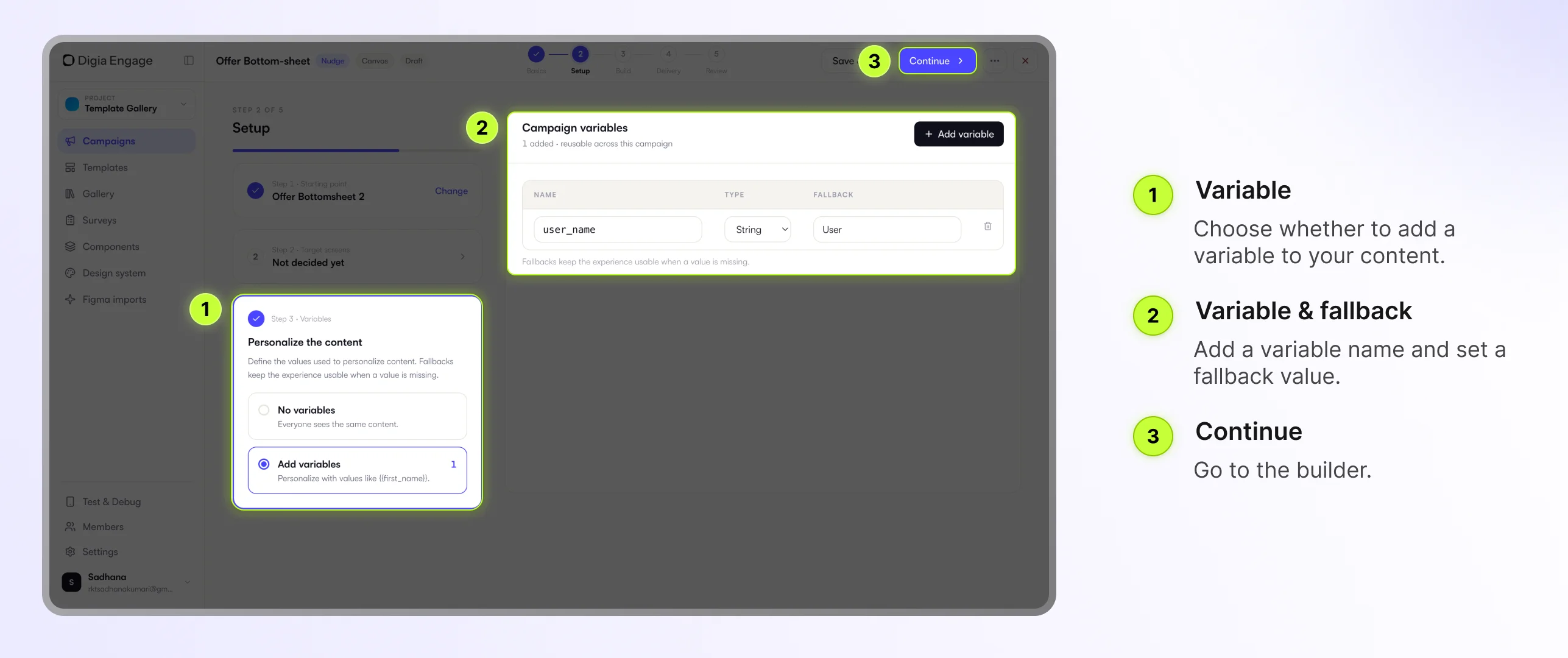

Add only the variables your Nudge UI will use, along with fallback values.

Design the Nudge

Use the visual builder to add and edit the content.

The builder has three main areas:

• The left panel lists the layers in the Nudge.
• The middle panel shows the live mobile preview.
• The right panel shows the attributes for whichever layer is selected.

A simple campaign might use this structure:

Layer	Example
Image	Product, offer, or brand visual
Text	Get 20% off your next order
Text	Use {{coupon}} before midnight.
Button	Shop now
Button or close icon	Maybe later

Supported widgets include images, text, buttons, layout groups, gaps, and close actions. Keep the bottom sheet focused on one message and one primary action. Use short headline/body copy, preview the design on the smallest device size your campaign supports, and make sure text does not clip before you continue.

For the primary CTA, choose the tap behavior, such as opening a deep link, opening a URL, copying a code, or closing the sheet.

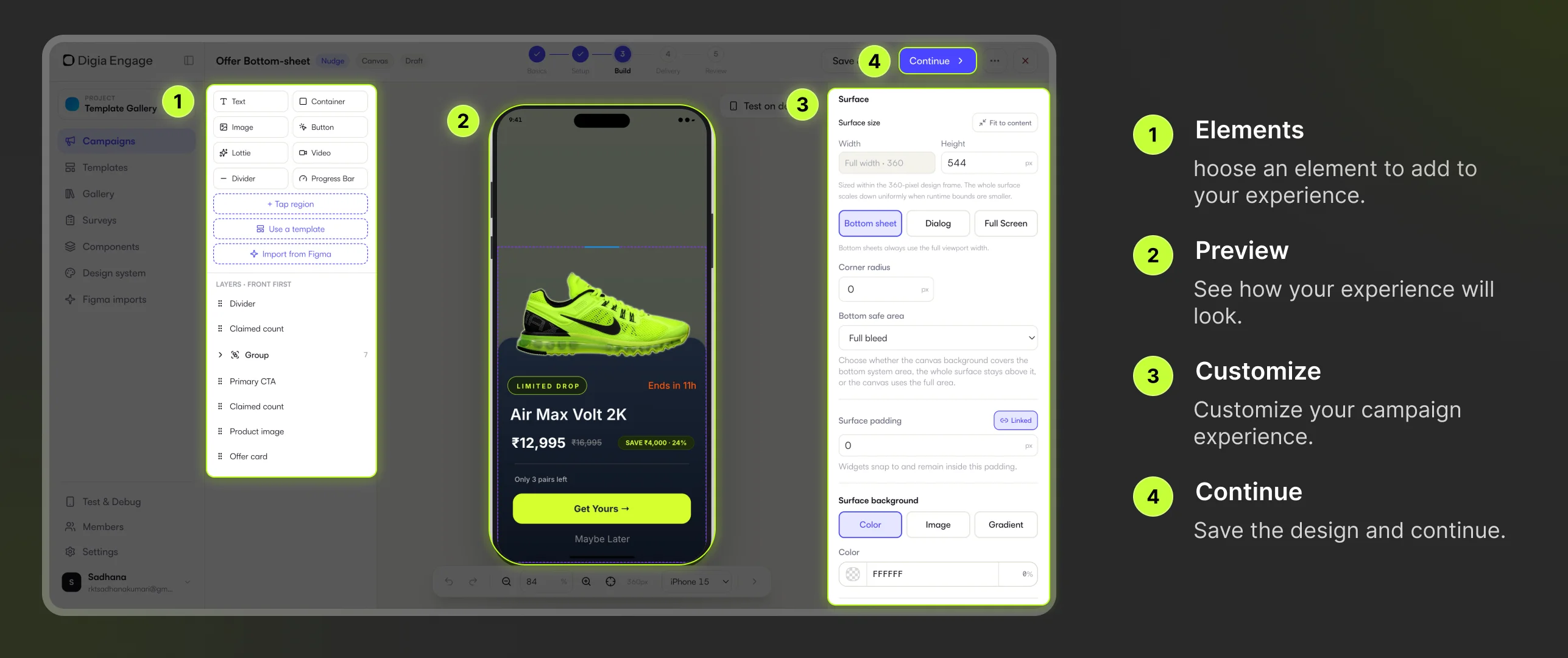

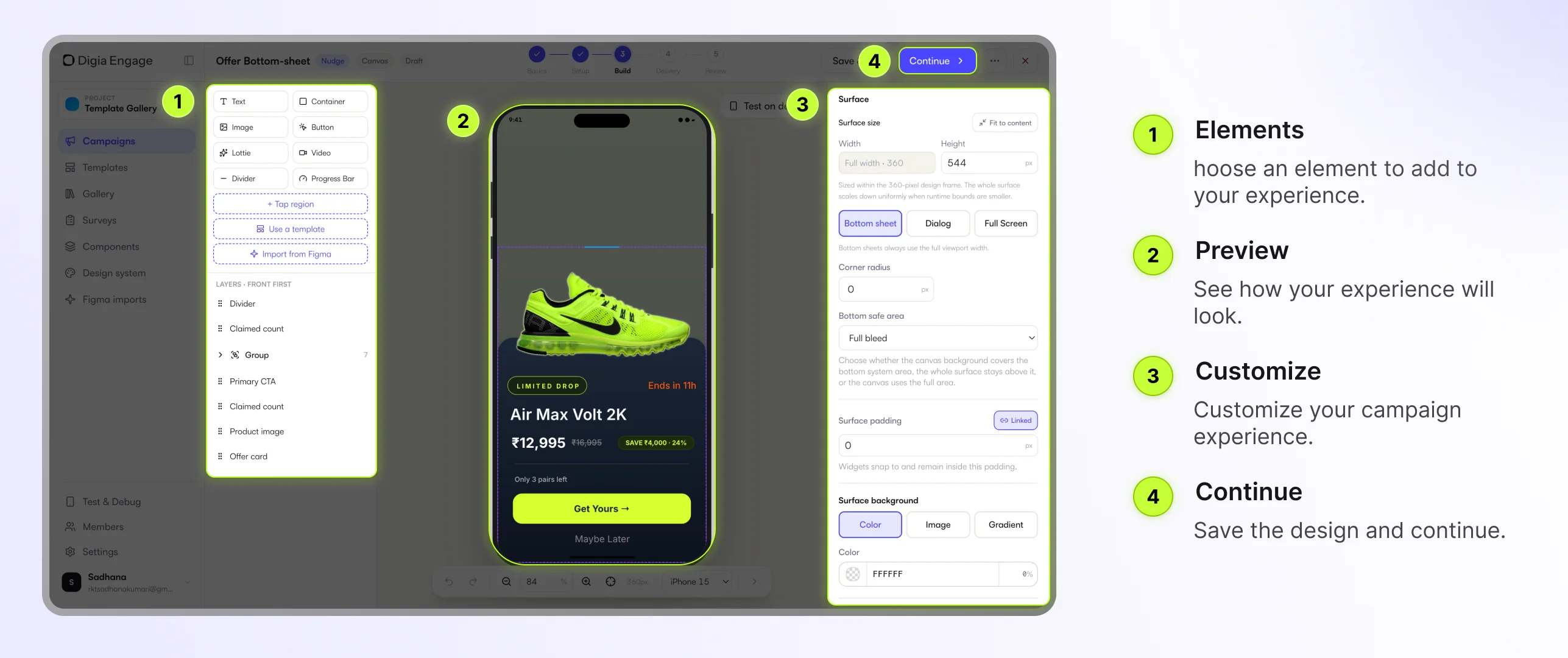

Select elements, check the mobile preview, adjust properties, and continue when the Nudge design is ready.

info

Once the Nudge UI is saved, use Live Testing Campaigns to send it to a connected debug device and check the experience before moving into delivery, review, and CleverTap setup.

Set Delivery Rules in Digia

On the Delivery step, choose how often Digia is allowed to show this Nudge to the same user.

Common choices:

Frequency cap	When to use it
Once ever	One-time announcements, onboarding messages, feature discovery
Once per session	Cart, checkout, or browsing prompts
Once per day	Daily offers or reminders
N times then stop	Repeated reminders that should eventually stop

CleverTap controls who qualifies and when the trigger happens. Digia's frequency cap controls whether the Nudge should still render after CleverTap fires.

For example, CleverTap may fire every time a user adds a product to cart, but Digia can still limit the Nudge to once per session.

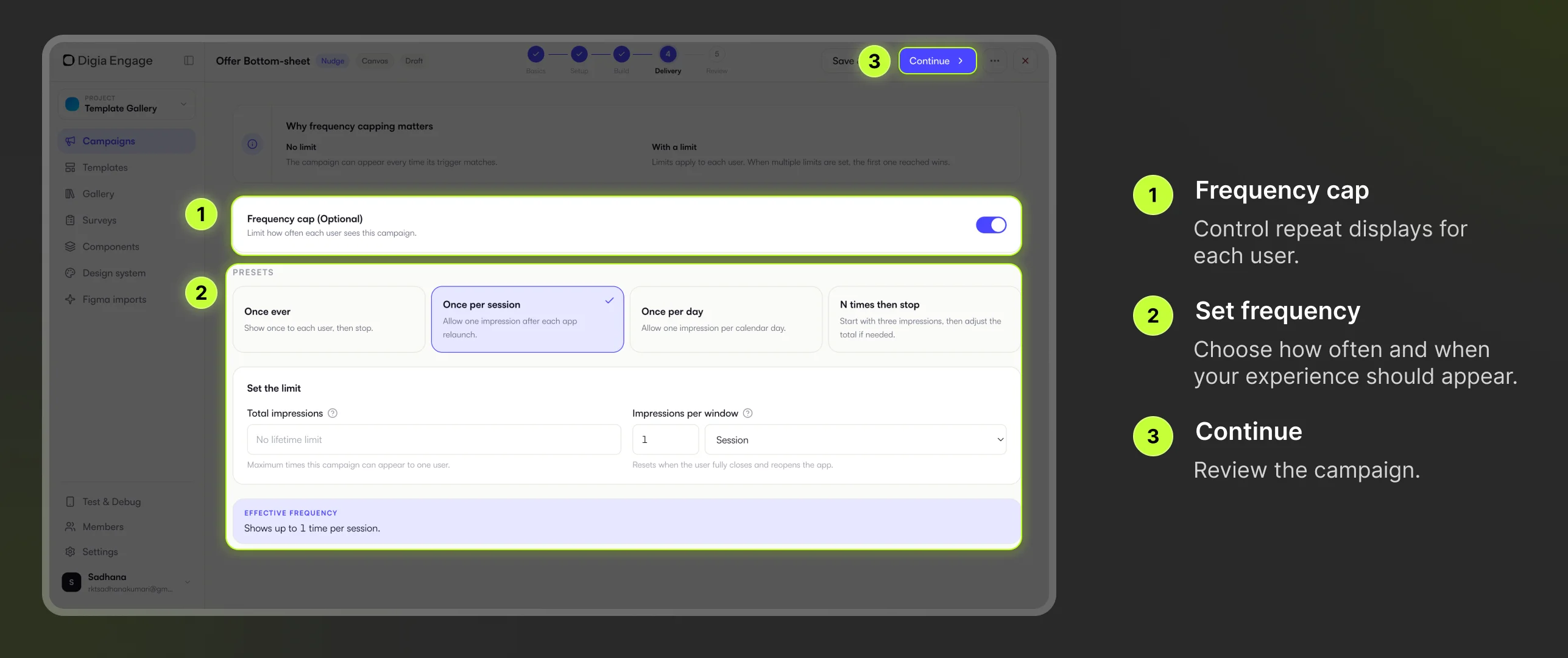

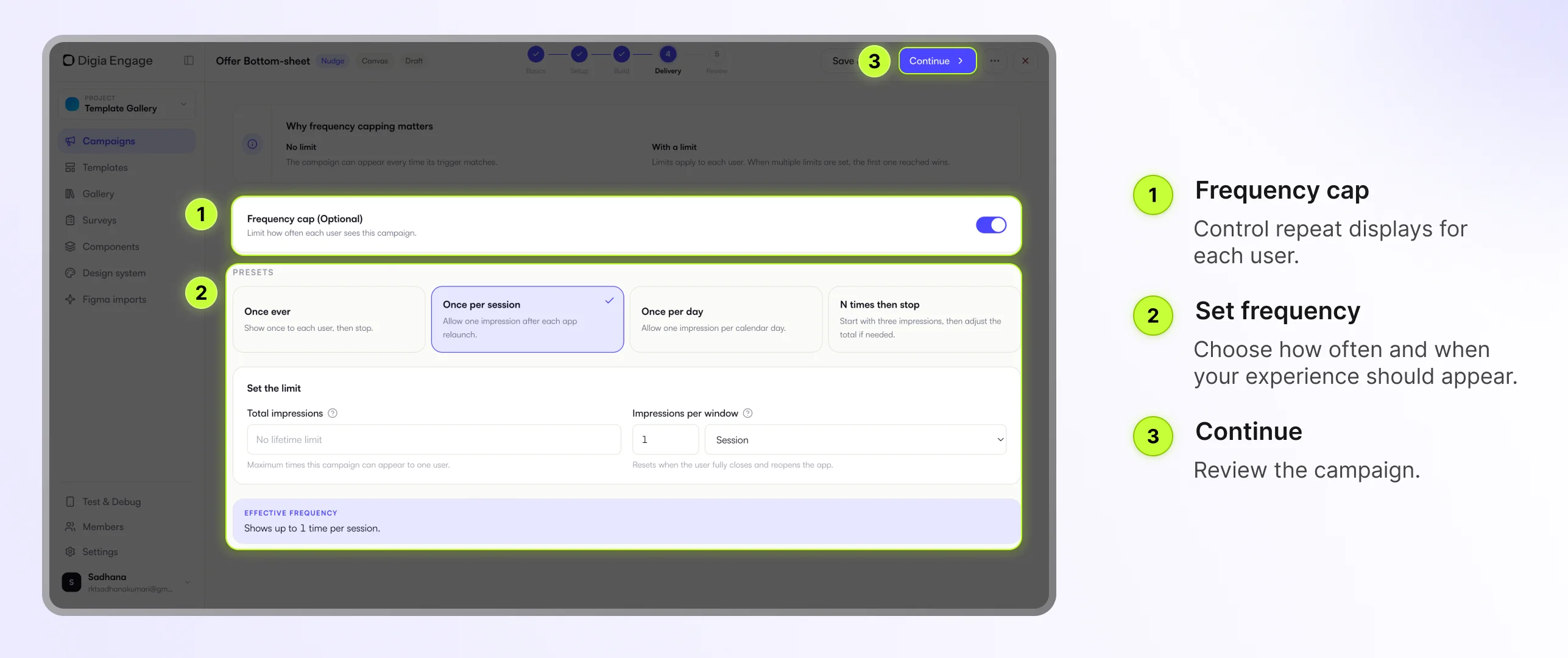

Choose the frequency cap that matches how often the Nudge should render for the same user.

Review, Activate, and Copy CleverTap Config

On the Review step, check:

• The campaign name is correct.
• The campaign type is Nudge.
• The surface is a bottom sheet.
• The content and CTA are ready.
• The frequency cap matches your campaign plan.

Review the campaign settings and check the mobile preview before continuing.

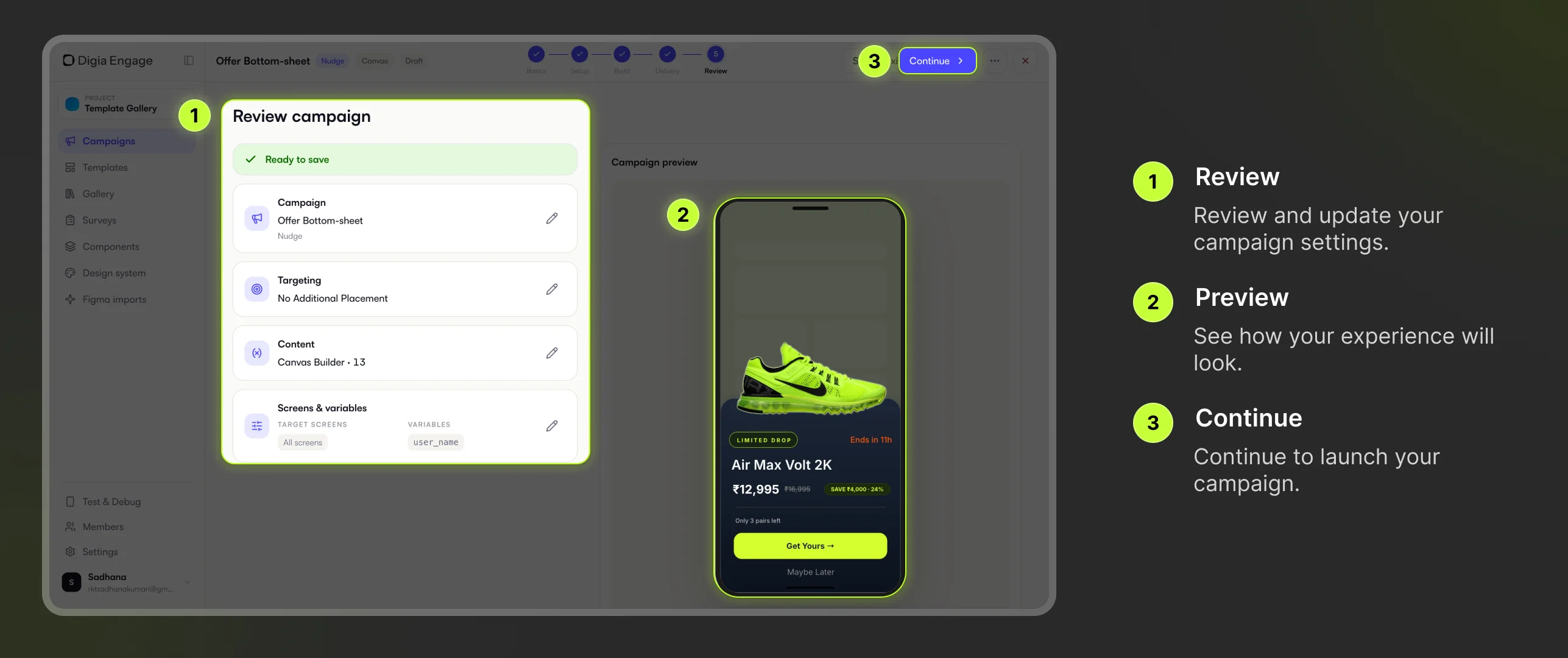

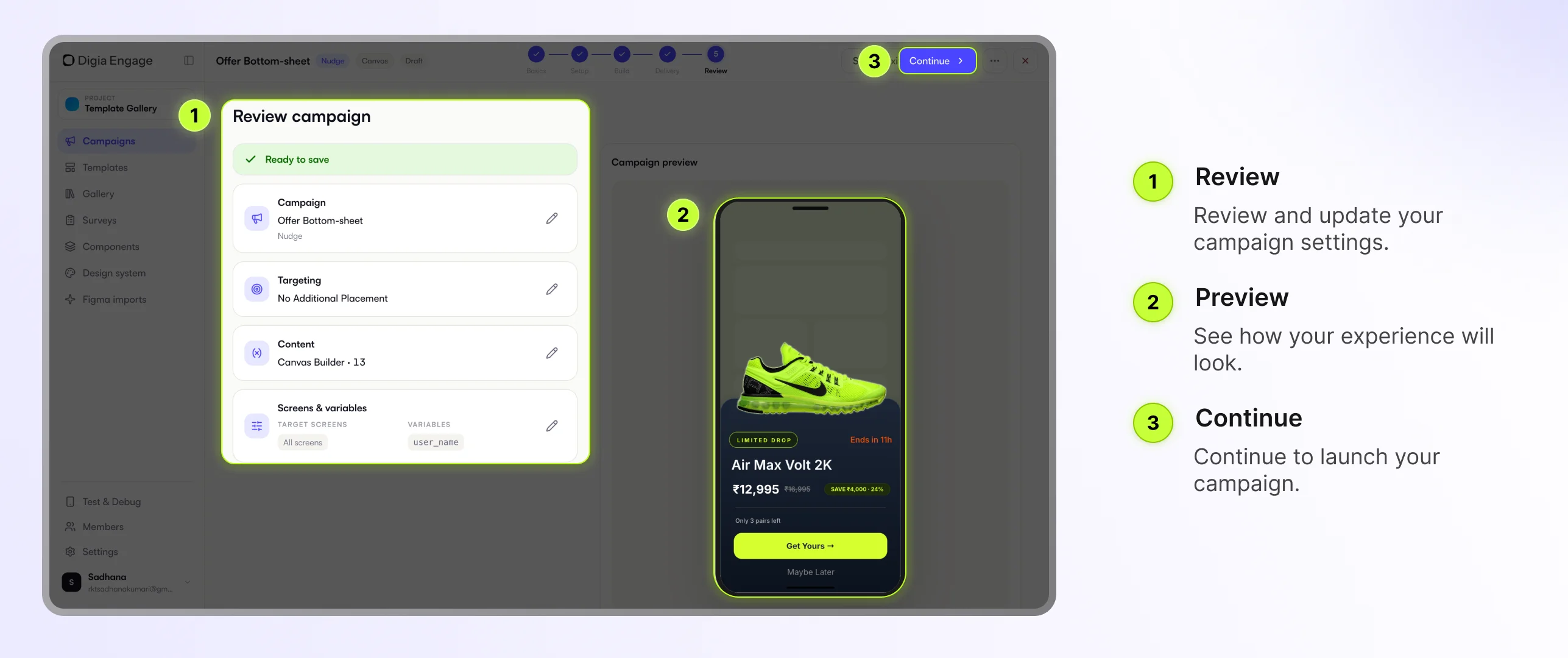

Review the Digia setup and preview the bottom sheet before continuing.

In the Integration details section, select the CleverTap tab. Copy the campaign key and variables config to paste into the CleverTap DigiaTemplate. When you are ready, choose Save & exit or Activate. Nothing shows to your users until the CleverTap campaign is configured and live.

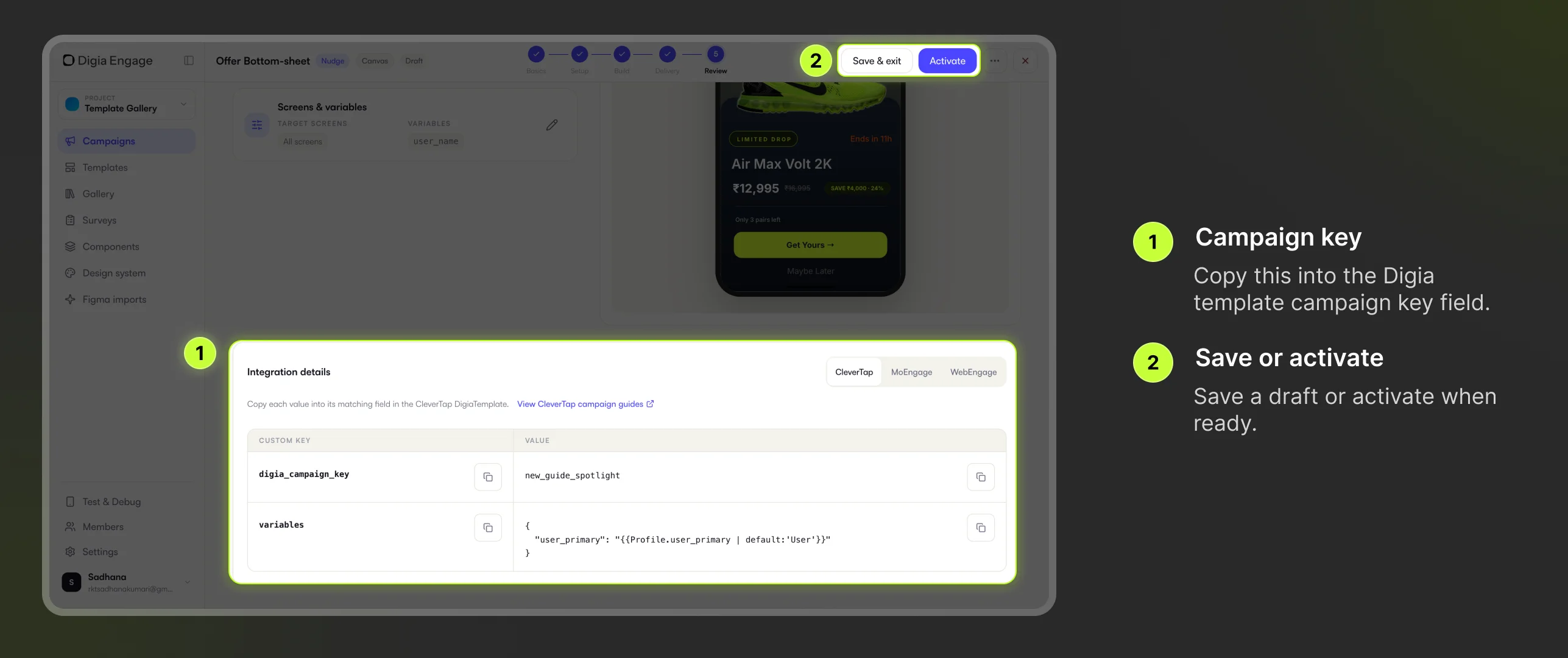

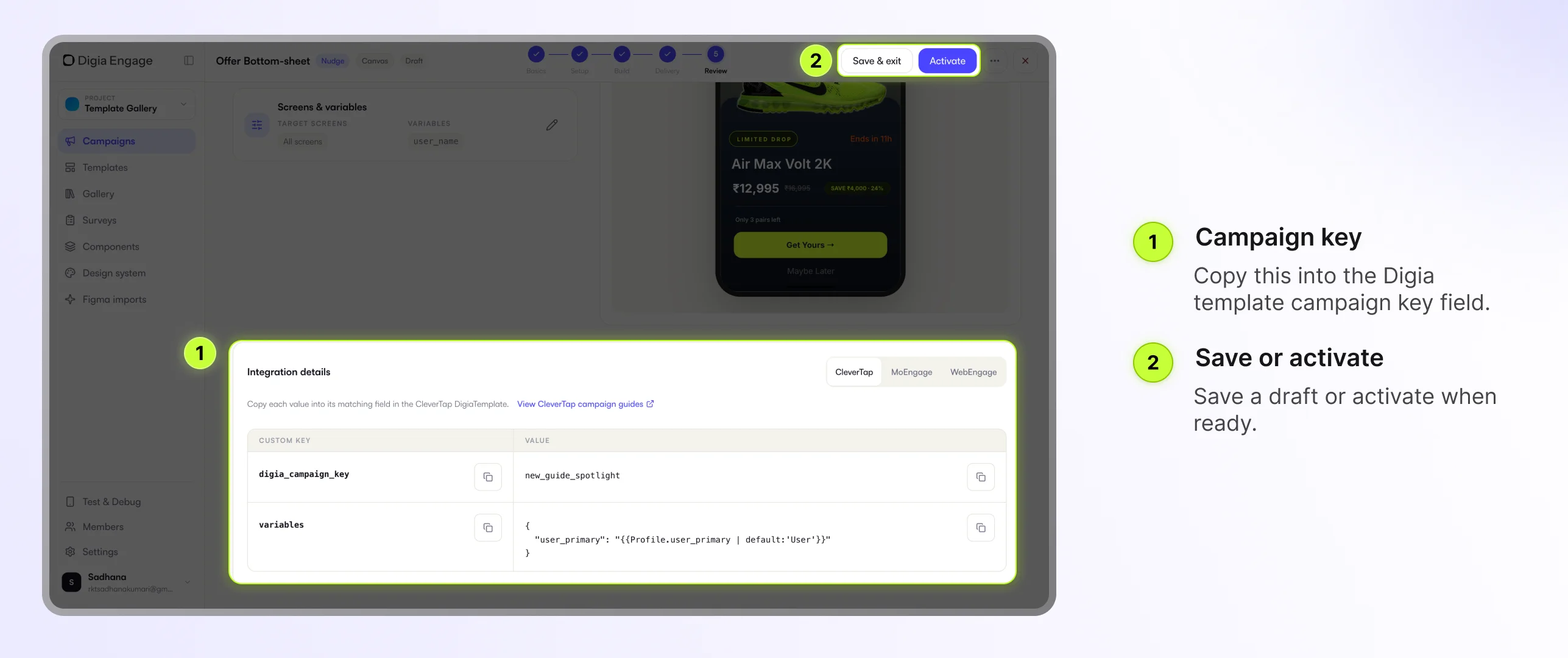

Copy the campaign key and variables config from the CleverTap integration details tab.

Create the CleverTap In-App Campaign

Now switch to CleverTap. This is where you decide who should see the Nudge and when it should appear.

Create an In-App campaign. Configure the audience, trigger, schedule, and priority as you normally would in CleverTap. For the first test, keep the audience narrow so only your test users qualify.

Create a Single Message In-App campaign and go to the editor.

In CleverTap's What section, keep the message type set to Single Message and select Go To Editor. In the editor, switch to Custom Code Templates and choose DigiaTemplate.

Use the template picker to move from the default templates to custom code templates.

Select DigiaTemplate.

info

If you do not see DigiaTemplate, your developer team has not completed the one-time CleverTap template setup. Share the CleverTap developer integration guide with them before continuing.

Link CleverTap to the Digia Campaign

In the CleverTap campaign message/template step, set the Digia campaign key.

Add:

Field	Value
digia_campaign_key	The campaign key copied from Digia

If your Digia campaign uses variables, also pass them from CleverTap.

Use the variables config copied from Digia as the starting point. Replace the sample profile paths only if your CleverTap project stores these values under different user properties.

{
  "coupon": "{{Profile.coupon | default:'SAVE20'}}",
  "first_name": "{{Profile.first_name | default:'Aarav'}}",
  "expiry_time": "{{Profile.expiry_time | default:'4 PM'}}"
}

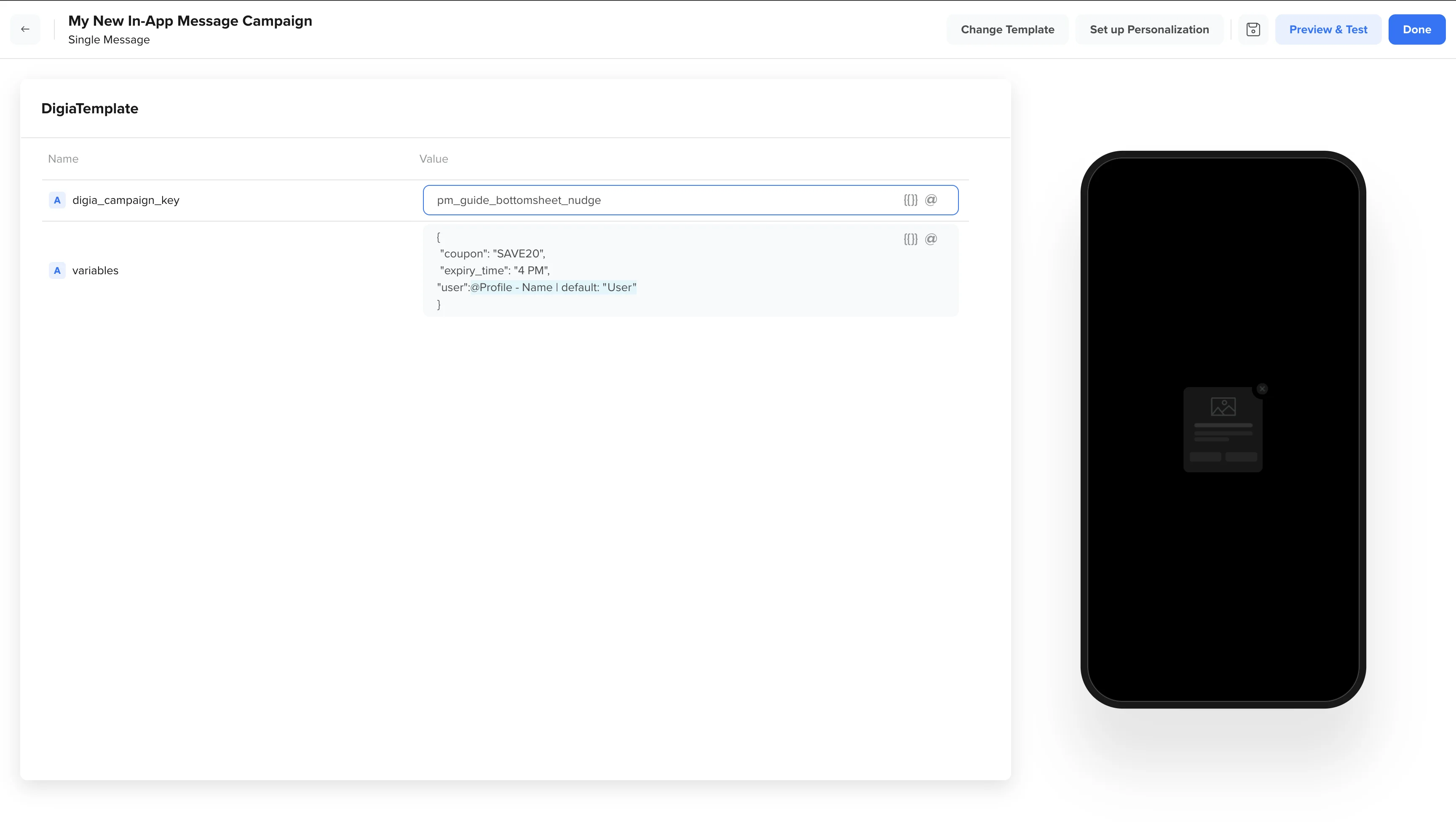

Paste the campaign key and variables config copied from Digia.

Test the Campaign End to End

Before launching to a real audience, test the full path from CleverTap trigger to Digia render:

1. Use a test audience in CleverTap.
2. Activate or preview the CleverTap campaign for that test audience.
3. Trigger the event from a test device.
4. Confirm the bottom sheet appears in the app.
5. Tap the primary CTA and confirm it performs the expected action.
6. Dismiss the Nudge and confirm the frequency cap behaves as expected.

Use Preview & Test with a test profile or device token before launching.

If the campaign does not appear, check:

What to check	Why it matters
The Digia campaign is active	Draft campaigns will not render for users
digia_campaign_key matches exactly	The key is case-sensitive
The user qualifies in CleverTap	CleverTap owns audience and trigger rules
The trigger event fired	CleverTap only sends the campaign after its trigger
Frequency cap has not already been reached	Digia may suppress repeat renders

info

CleverTap can sometimes take up to an hour to start delivering a new campaign. If the campaign still does not appear after that, reach out to Digia support.

Launch Checklist

Before going live, confirm:

• Digia campaign is active.
• CleverTap campaign uses DigiaTemplate.
• digia_campaign_key matches the Digia campaign key.
• Variables are valid JSON, if used.
• Audience and trigger rules are correct in CleverTap.
• Frequency cap is set in Digia.
• The campaign was tested on at least one real device.

Once these are complete, schedule or activate the CleverTap campaign for the intended audience.

What to Measure

After launch, review:

Metric	What it tells you
Impressions	How often the Nudge was shown
Primary CTA clicks	How many users took the main action
Dismissals	How many users closed the Nudge
Conversion event in CleverTap	Whether the campaign moved the business metric

Use CleverTap for audience and conversion analysis. Use Digia campaign reporting to understand how the rendered experience performed.

Recap

1. Create a Nudge campaign in Digia.
2. Add any variables used in the UI.
3. Design the bottom sheet and set delivery rules.
4. Create a CleverTap In-App campaign using DigiaTemplate.
5. Paste the campaign key as digia_campaign_key.
6. Paste the variables config only if your Digia content uses variables.
7. Test on a real device.
8. Launch from CleverTap.

For the technical mapping between Digia and CleverTap, see How Digia Maps to CleverTap Campaigns.
