Inline Carousel with MoEngage

This guide walks you through creating an Inline Carousel, connecting it to MoEngage, and testing it inside an app slot. Inline campaigns render inside a developer-defined slot in your app layout instead of appearing as an overlay.

Use an Inline Carousel for homepage offers, product discovery cards, feature banners, or merchandising slots.

info

Prefer a quick visual walkthrough first? Watch Creating Native Inline Content Experiences.

Before You Start

Make sure you have:

• Access to the correct Digia Engage project created with MoEngage as the CEP integration.
• Access to the matching MoEngage project.
• Your app must already be integrated with Digia Engage and MoEngage. Share the MoEngage developer integration guide with your app team if this setup is not complete yet.
• The audience and trigger event decided in MoEngage.
• A test profile or test segment in MoEngage so you can verify the campaign before launch.
• Your app team must have added a Digia inline slot where the carousel should render.
• The available slot key shared by your app team.
• Carousel image URLs and tap actions ready.

info

This guide is written for product managers and marketers. Developer-only setup is linked above so you know what must already be complete before campaign testing.

Slot keys

A slot key is the name your app team gives to a place in the app layout where Inline content can render. The slot key in Digia must match the app implementation exactly.

Slot key	Where it appears
home_carousel	Homepage hero carousel area
product_offers	Product detail offer slot
checkout_banner	Checkout reminder banner

info

For developer setup details, see the Inline widgets section in the MoEngage developer integration guide. After slots are synced, review usable pages and slots in Component Registry before building the campaign.

Create an Inline Carousel Campaign

Go to Campaigns and choose New Campaign. Use a name such as:

Homepage Carousel Inline - MoEngage

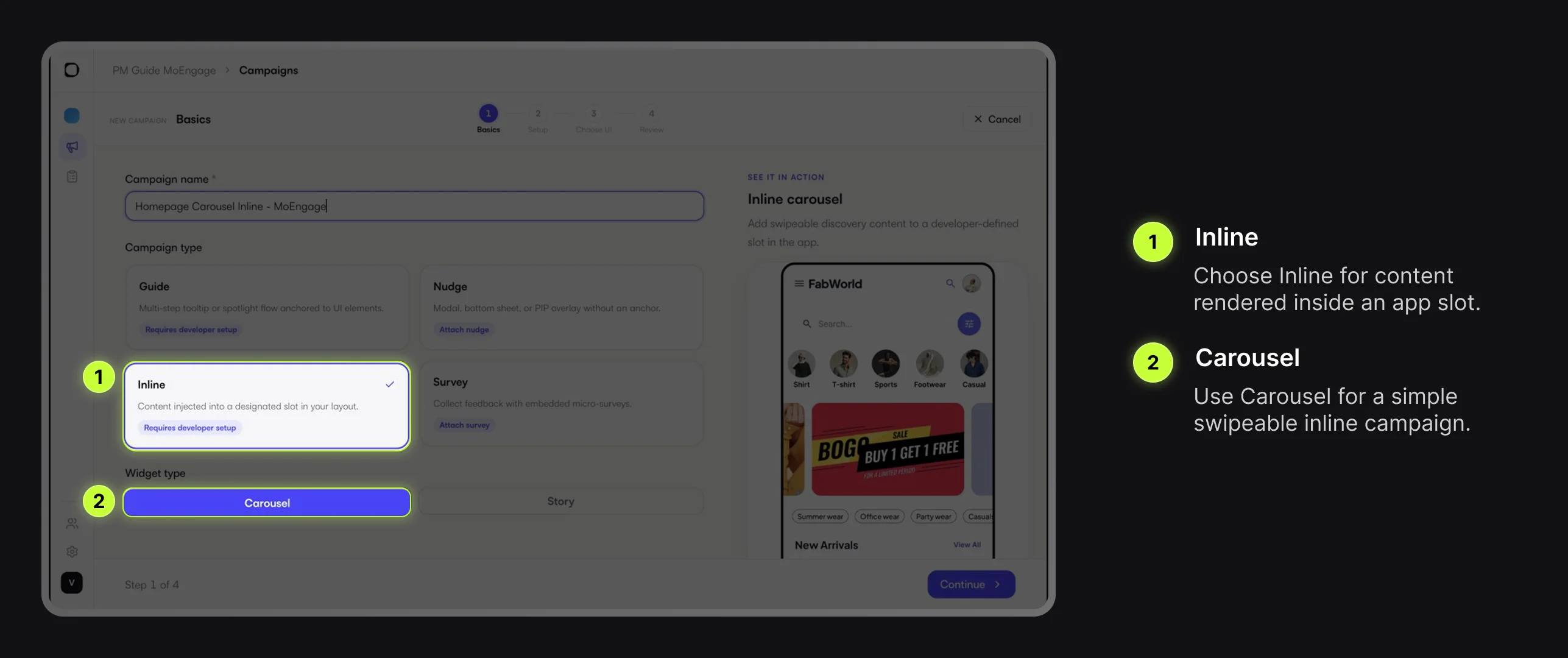

On the Basics step, select Inline and choose Carousel as the widget type.

Select Inline and choose Carousel as the widget type.

Confirm Setup Values

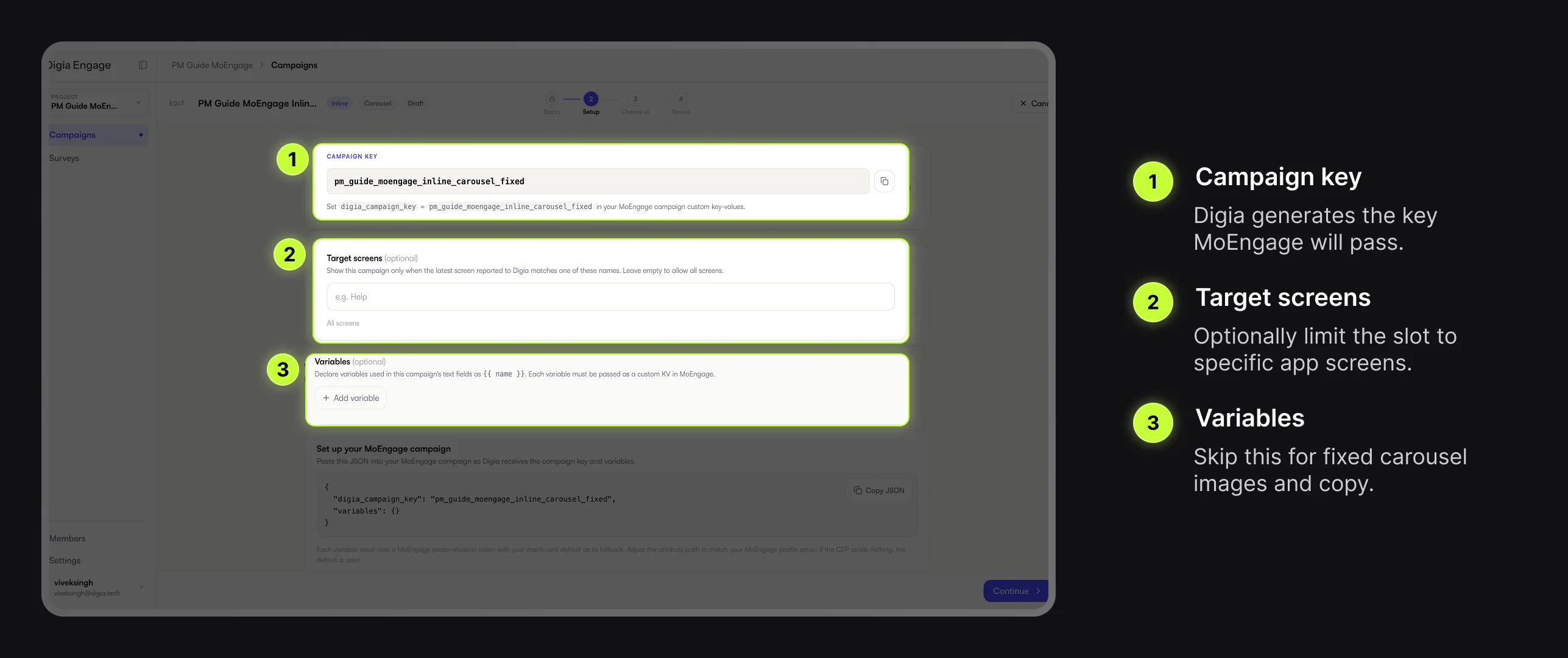

The Setup step shows the campaign key and optional screen targeting. Use Target screens only if the carousel should render on specific app screens.

Confirm the campaign key and decide whether screen targeting is needed.

Build the Carousel

On the Choose UI step, add carousel items. For each image, paste the image URL and add a tap action only if tapping that image should open a deep link, URL, or another action.

In the Settings panel, enter the slot key provided by your app team.

home_carousel

Keep the default carousel settings unless you need to adjust height, auto-play, interval, infinite scroll, viewport fraction, or indicator dots.

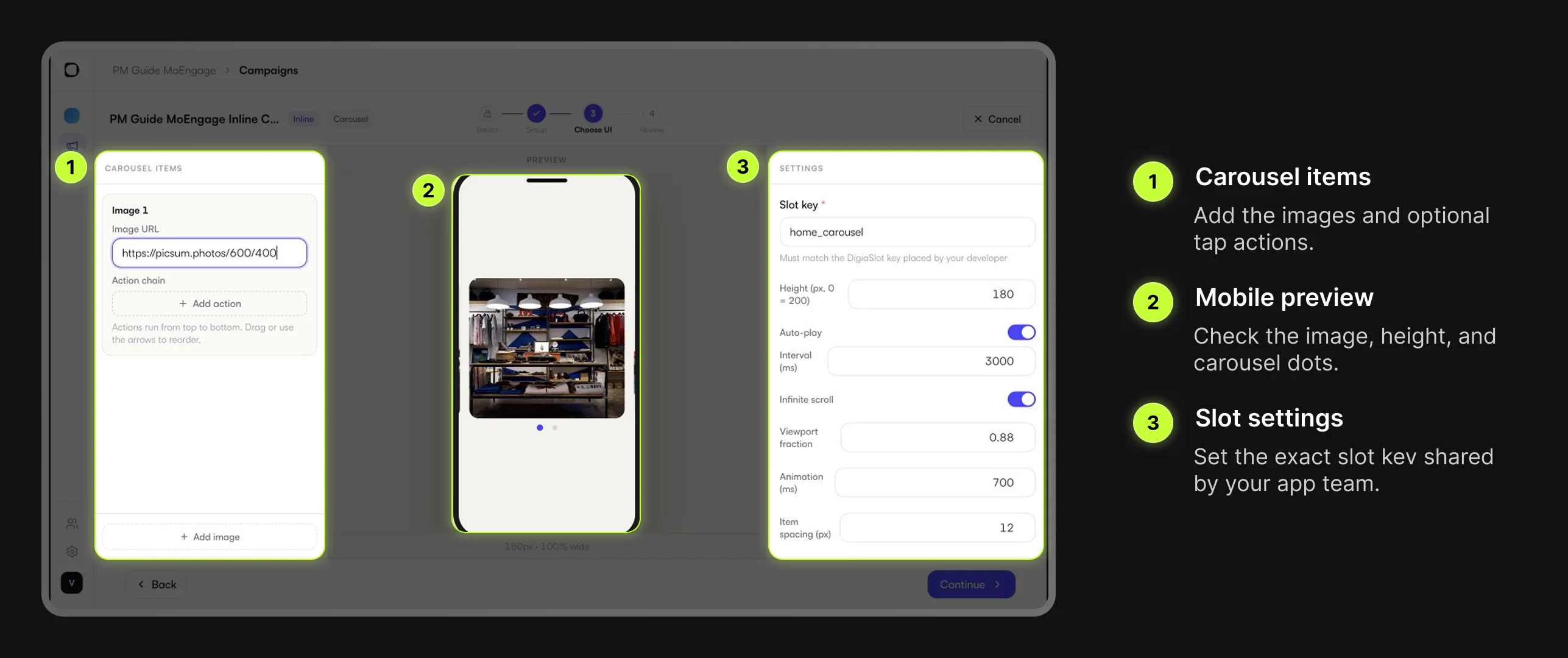

Add carousel images, check the mobile preview, and set the exact slot key shared by your app team.

info

Once the Inline campaign UI is saved, use Live Testing Campaigns to send it to a connected debug device and confirm it renders inside the expected slot before moving into review and MoEngage setup.

Review the Inline Campaign

Check the campaign name, type, slot key, number of images, and launch checks. You can save as draft while MoEngage setup is pending, or activate when the carousel is ready.

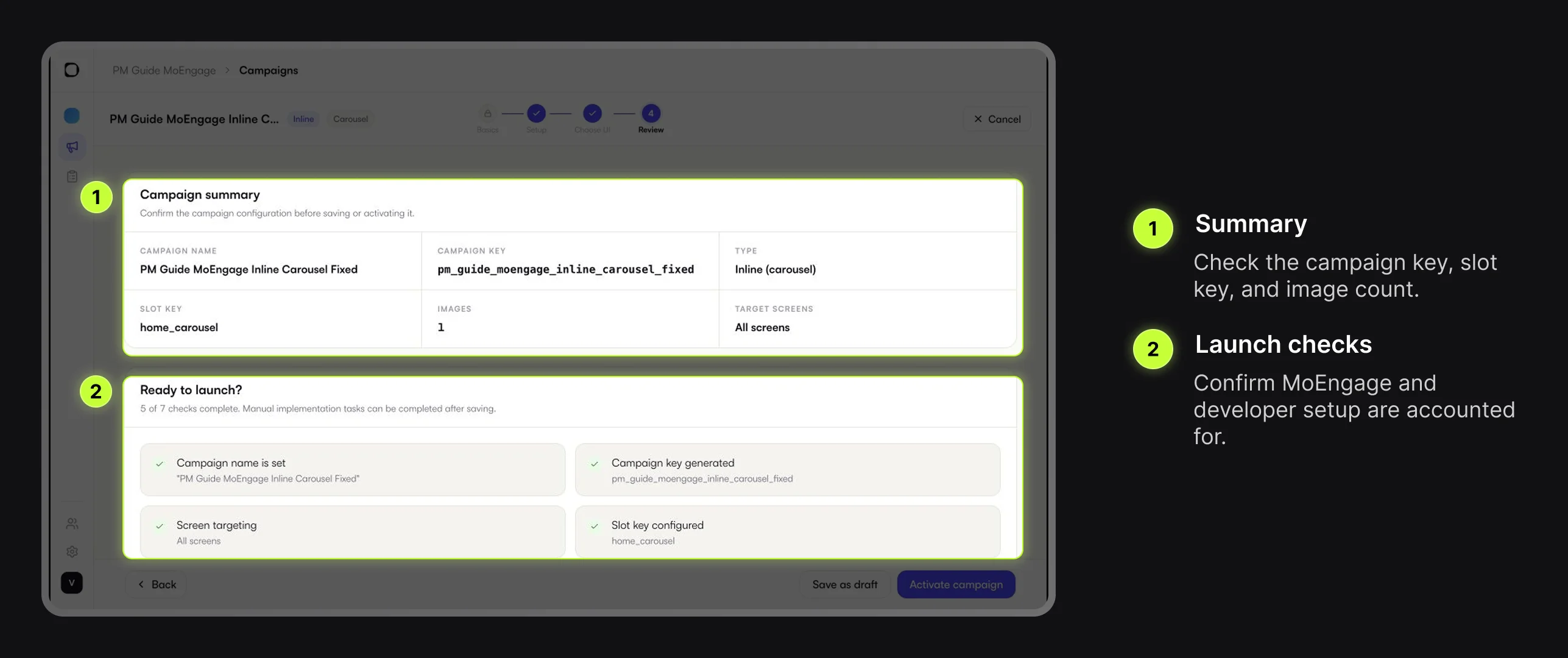

Review the campaign summary and launch checks before saving or activating.

Copy the campaign key from the MoEngage setup section.

Create the MoEngage Self-Handled In-App Campaign

Create a MoEngage Self-Handled In-App campaign. MoEngage decides the audience, trigger event, schedule, and priority. Digia decides what renders after the campaign fires. Inline campaigns for MoEngage use the same campaign payload contract as other Digia experiences; the Digia campaign type tells the SDK to render into the matching slot.

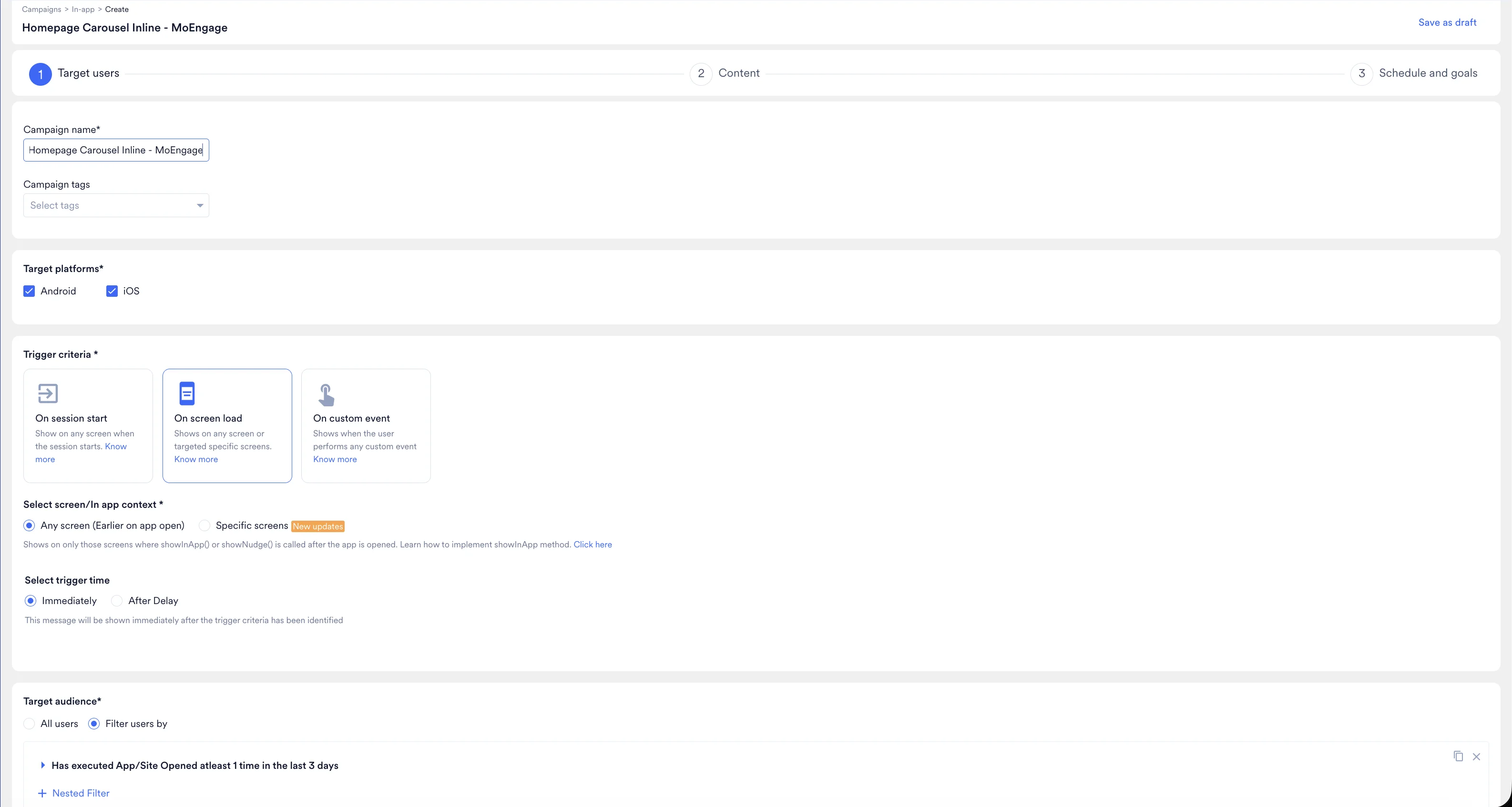

Name the MoEngage campaign, choose platforms, select the trigger, and define the audience.

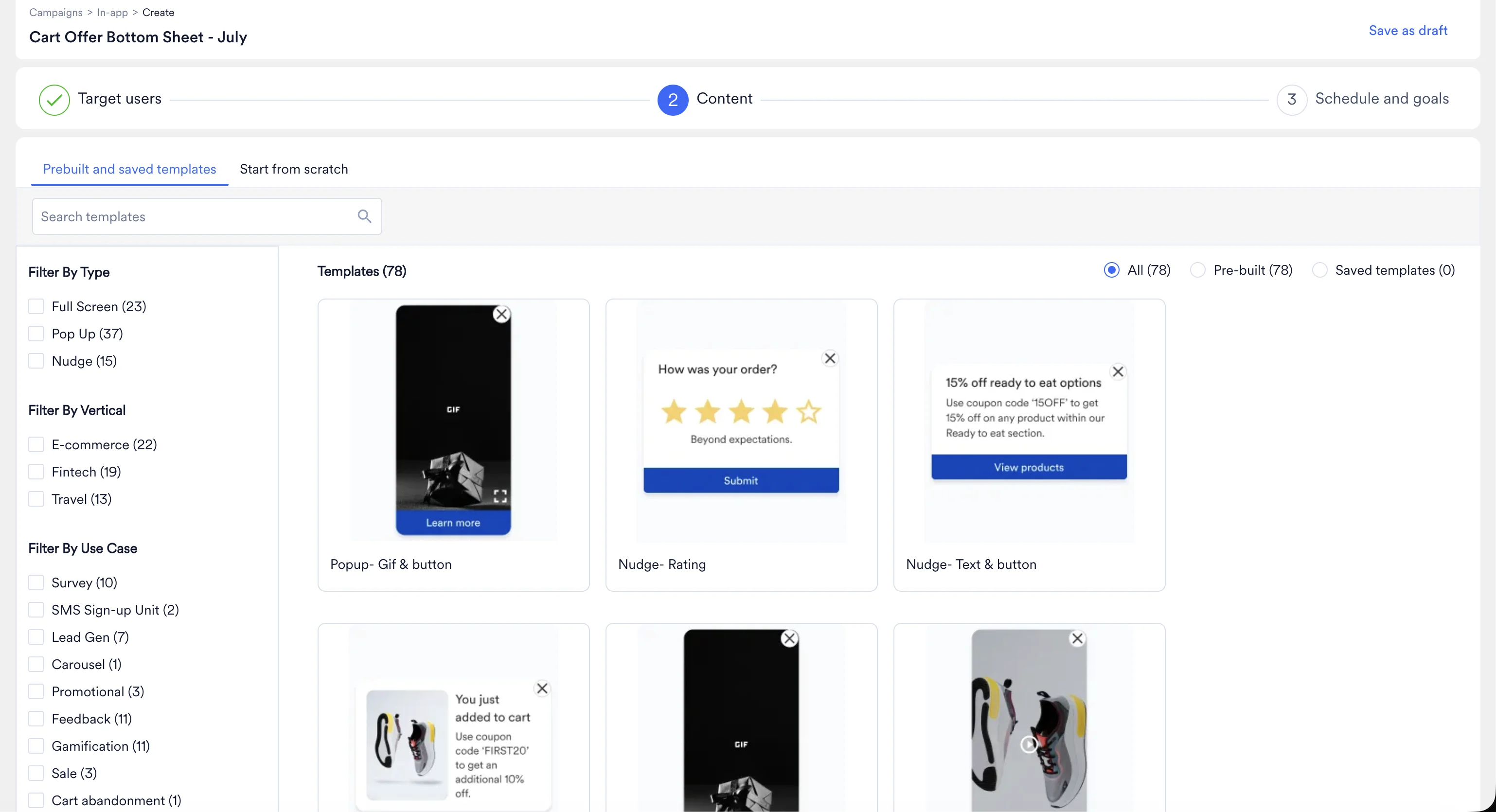

On the content step, switch to Start from scratch if MoEngage opens the template gallery first.

If you land on the template gallery, move to Start from scratch before choosing the content type.

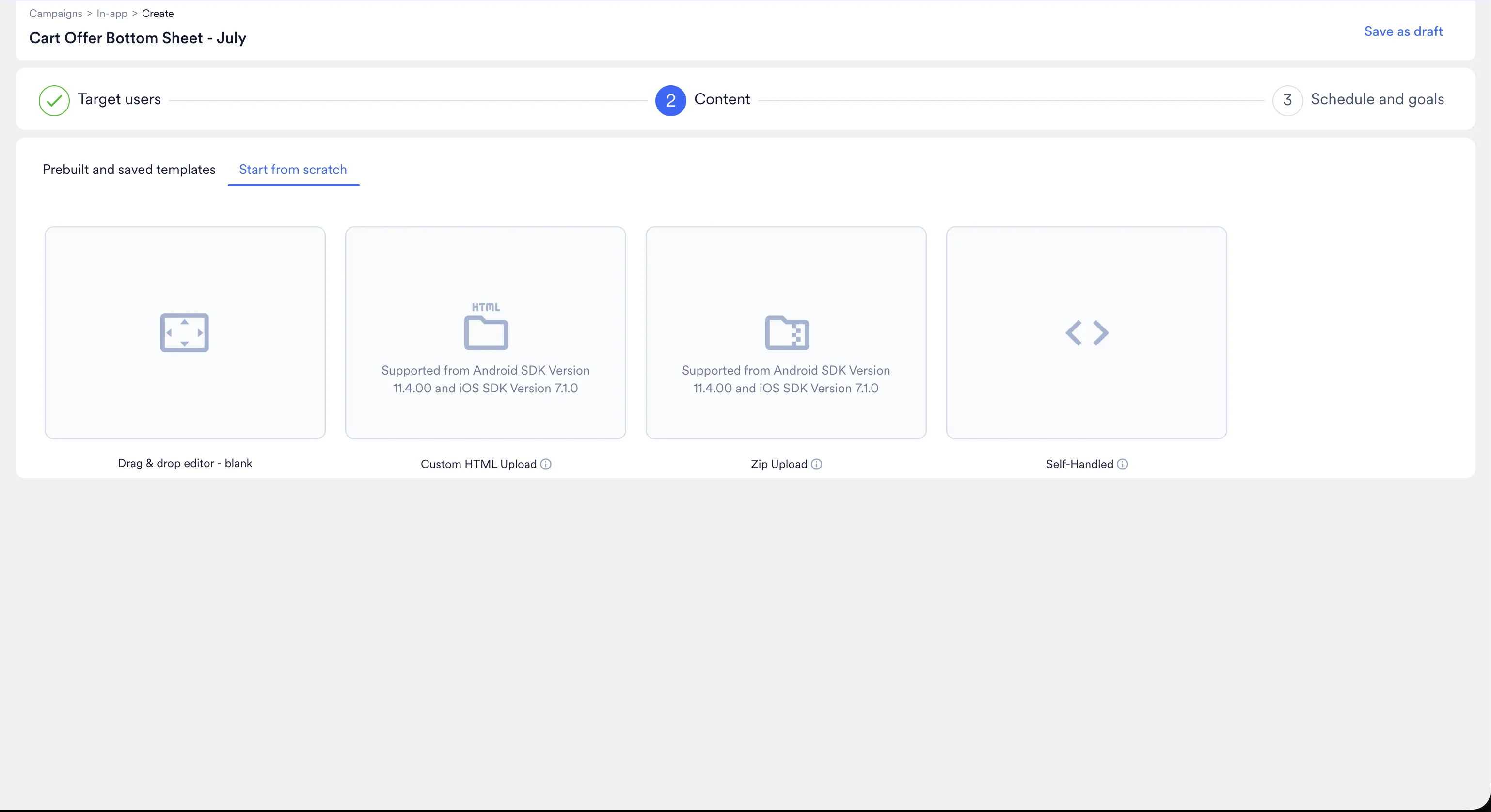

Choose Self-Handled content so MoEngage can pass the Digia Inline campaign key to the app.

Select Self-Handled for the campaign content.

Link MoEngage to the Digia Inline Campaign

In MoEngage, go to the campaign data or key-value pairs section and add the Digia payload. Inline campaigns currently require only digia_campaign_key.

{
  "digia_campaign_key": "homepage_carousel_inline_moengage"
}

Keep the carousel images, slot key, and carousel behavior in Digia. MoEngage should only carry the campaign key.

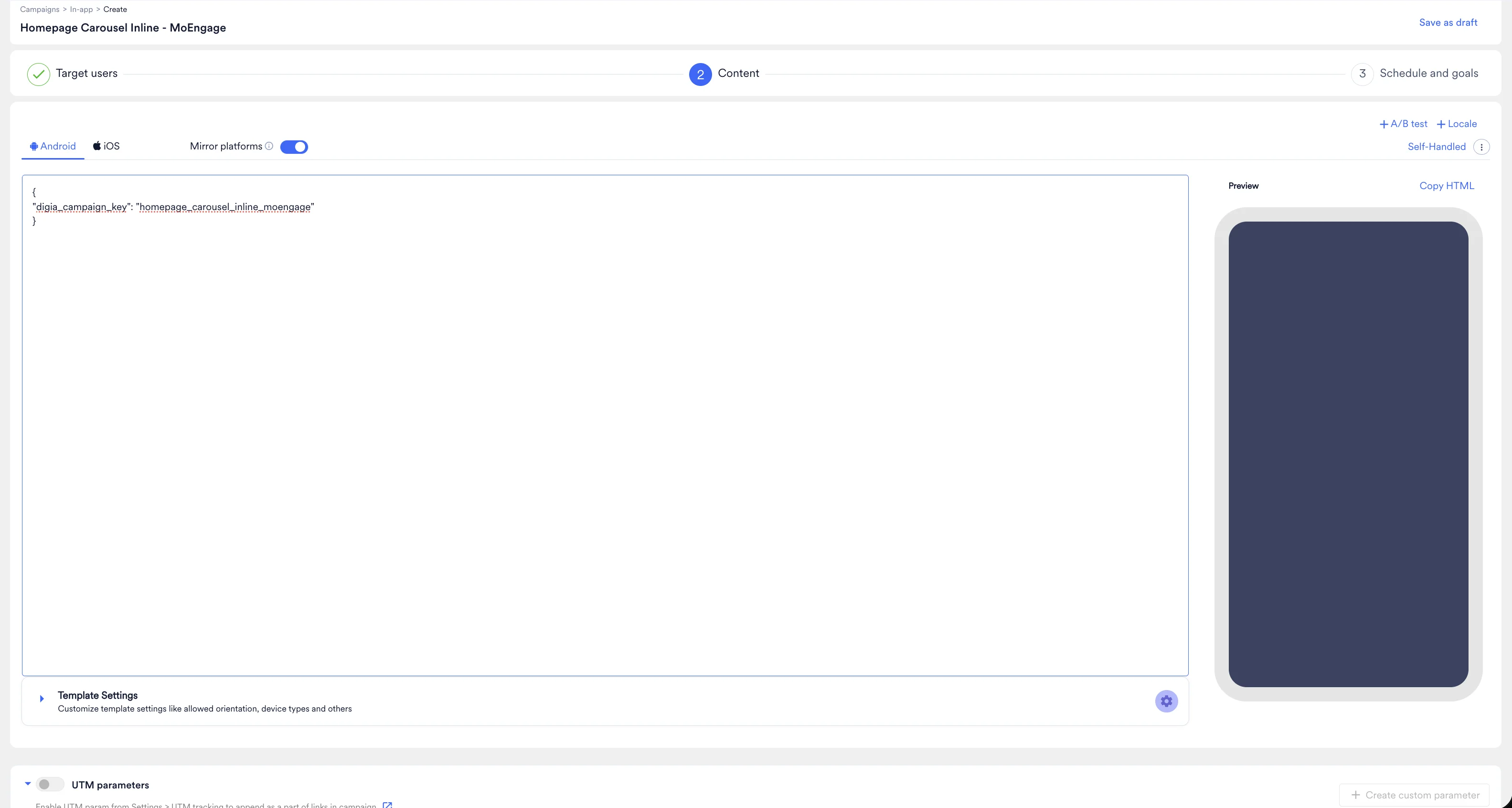

Paste only the Inline campaign key into the MoEngage Self-Handled payload.

Test the Inline Campaign End to End

1. Use a test audience in MoEngage.
2. Activate or preview the MoEngage campaign for that audience.
3. Open the app screen that contains the home_carousel slot.
4. Trigger the event from a test device.
5. Confirm the carousel appears inside the correct slot.
6. Swipe through all carousel items.
7. Tap any configured item action and confirm it performs the expected action.

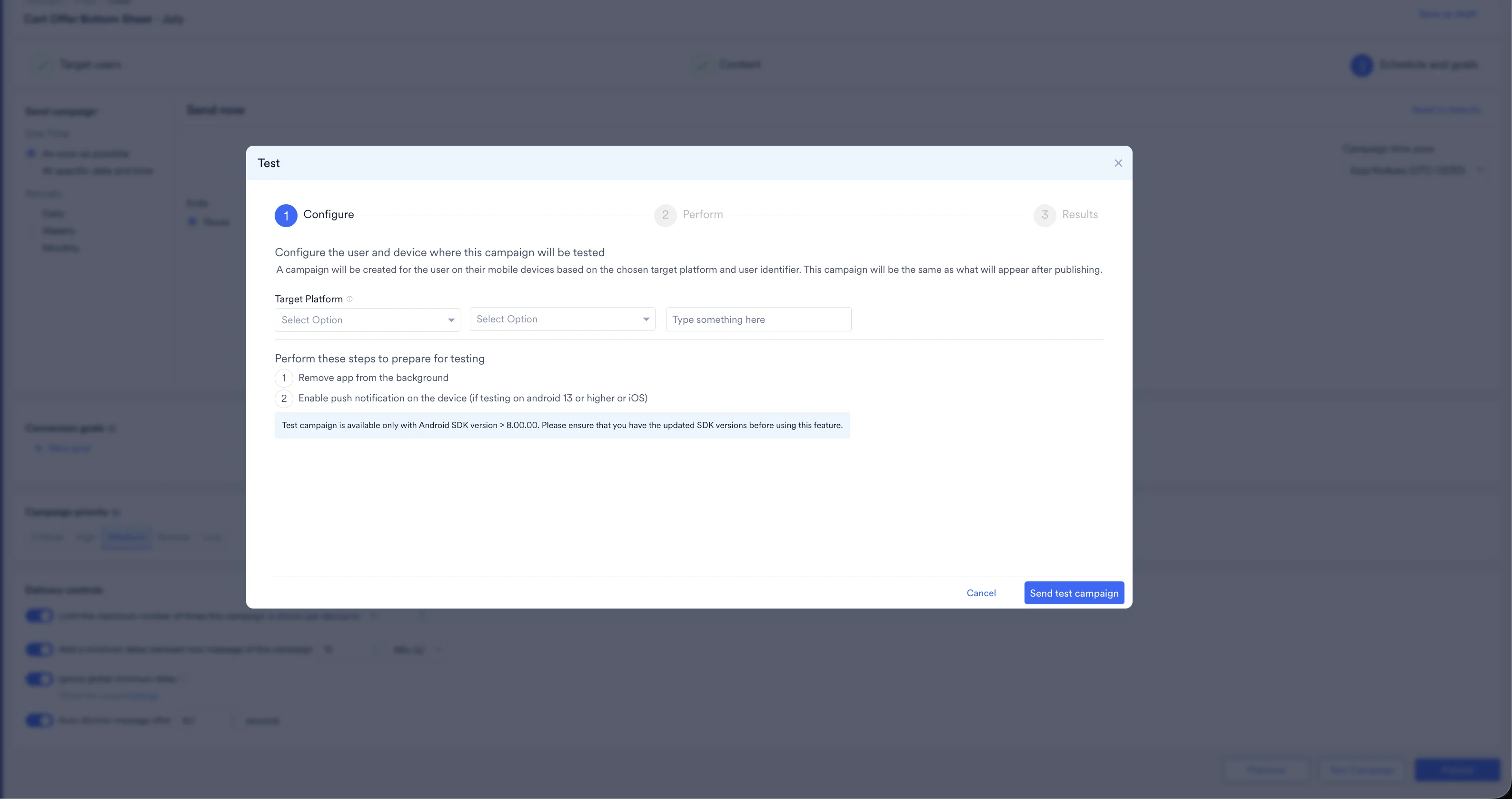

Use MoEngage's test campaign flow to send the Inline campaign to a test user or device.

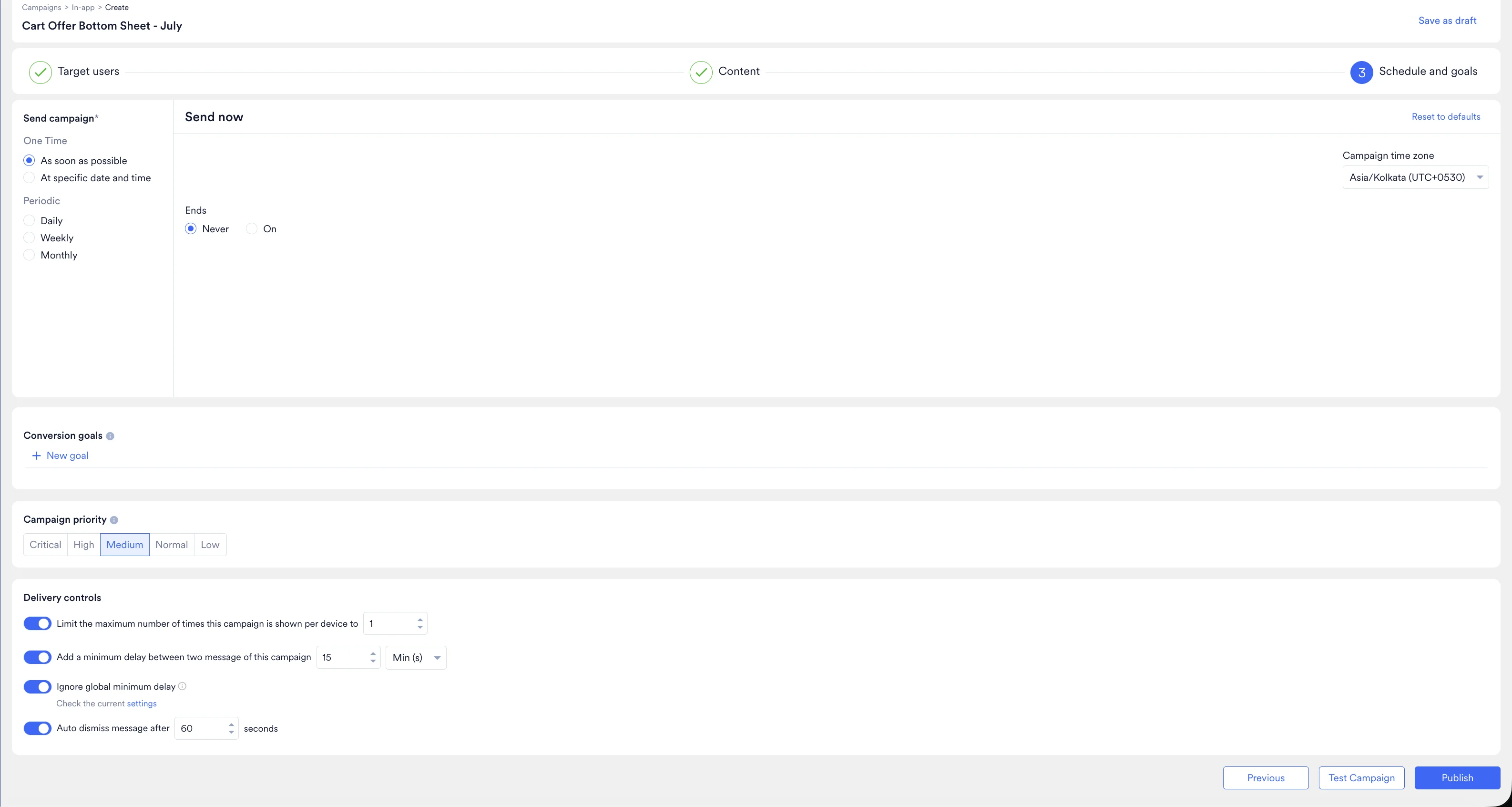

Before publishing, confirm schedule, priority, delivery controls, and goals.

If the Inline campaign does not appear, check:

What to check	Why it matters
The Digia campaign is active	Draft campaigns will not render
digia_campaign_key matches exactly	The key is case-sensitive
The MoEngage campaign uses Self-Handled In-App	The Digia plugin only receives the expected payload format
The app screen contains the slot	Inline content needs a mounted Digia slot
Slot key matches exactly	A typo prevents the carousel from rendering

info

MoEngage can sometimes take time to start delivering a newly activated campaign. If the campaign still does not appear after your usual campaign propagation window, reach out to Digia support.

Launch Checklist

• Digia Inline campaign is active.
• MoEngage campaign uses Self-Handled In-App.
• digia_campaign_key matches the Digia campaign key.
• Slot key matches the app team's placement key.
• The slot exists on the screen where MoEngage will trigger the campaign.
• Audience and trigger rules are correct in MoEngage.
• The carousel was tested on at least one real device.
