TL;DR: An in-app onboarding flow is a structured, behavior-triggered experience that guides new users from sign-up to their first meaningful action inside the app. A product tour is not the same thing. Onboarding flows have three distinct phases: welcome, activation, and habit formation. The three core formats, checklists, guided walkthroughs, and spotlight tooltips, each serve a different role in that sequence. This guide covers the full picture and gives you a step-by-step process to build one without writing code.
The Problem No One Wants to Say Out Loud
More than 90% of users never complete an onboarding flow. The global app onboarding completion rate after 30 days sits at 8.4%, according to data tracked across app categories from 2021 to 2025. That means the average app successfully downloads onto a device, opens once, and then loses almost every new user before those users ever reach the product's core value.
The instinct most teams have after seeing that number is to add more screens, more tooltips, more explanation. That instinct is wrong. 72% of users abandon apps during onboarding when the flow requires too many steps. More is not the answer. A better-structured sequence is.
That sequence is what this guide covers.
What an In-App Onboarding Flow Actually Is
An in-app onboarding flow is a sequence of guided experiences, delivered inside the app, that moves a new user from the moment of first open to the moment they complete their first meaningful action. Every step in the flow has a specific job: reduce confusion, remove a friction point, or trigger the next action in the activation path.
The operative word in that definition is sequence. Onboarding is not a single tooltip or a welcome modal. It is a coordinated chain of touchpoints, spread across the first session and often across the first several days, designed to get one specific behavior to happen.
That one behavior is called the activation event. For a payments app, it might be completing a first UPI transaction. For a savings app, it might be setting up an auto-debit. For a content app, it might be following five topics. The onboarding flow's entire purpose is to get users to that event as directly as possible.

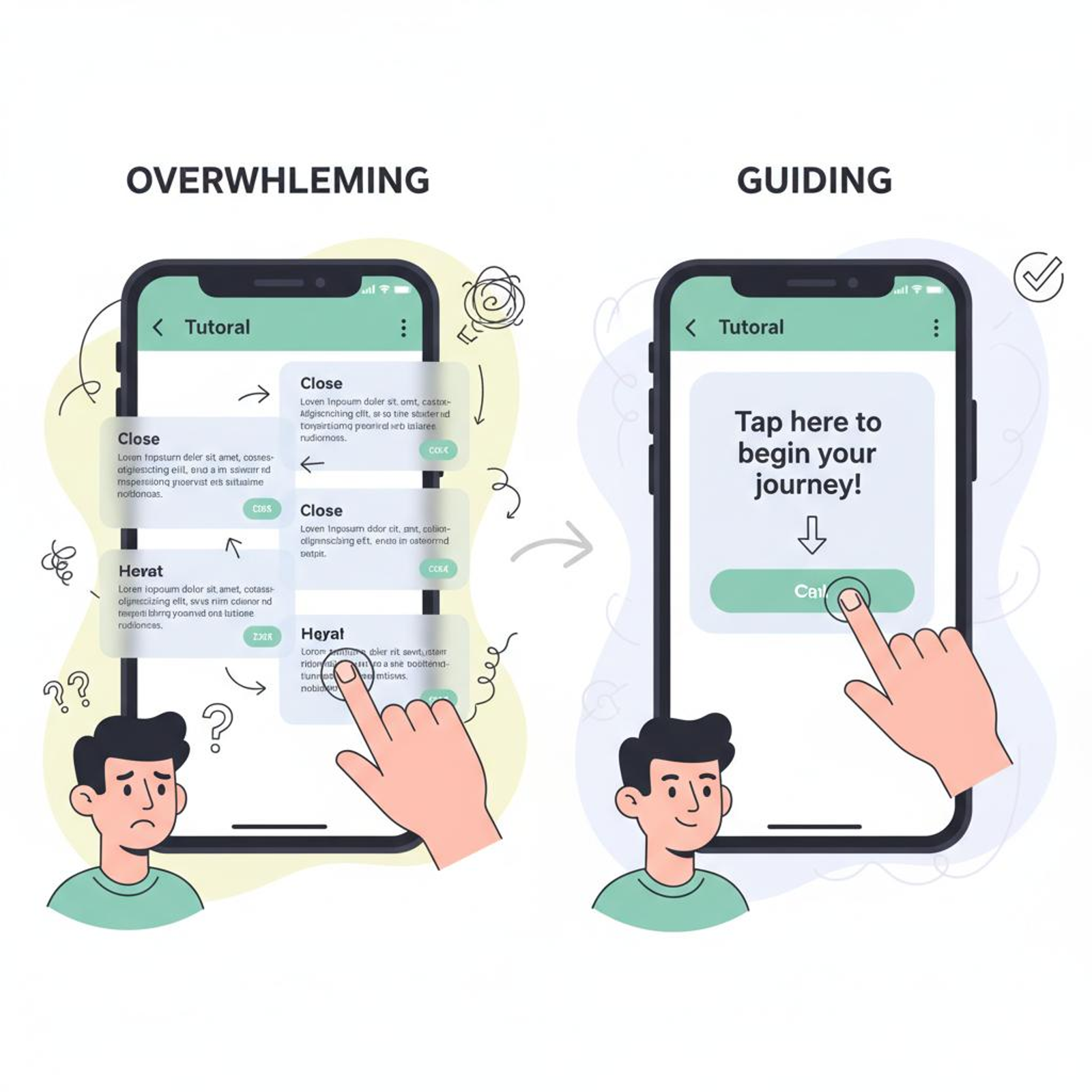

The Distinction Between a Product Tour and an Onboarding Flow
These two terms get used interchangeably. They describe different things.
A product tour shows users where features are. It is a guided walk through the interface, pointing at tabs, buttons, and sections. A product tour shows where a feature or page is, while a walkthrough shows how something works. Tours are passive. The user watches. Nothing is required of them.
An onboarding flow drives users to do something. It is built around a specific activation event and every element in the flow, from the welcome screen to the final spotlight, is designed to move the user toward that event. The user is not an audience. They are an active participant who needs to complete real actions inside the product.
The practical difference shows up in outcomes. A product tour ends when the slides end. An onboarding flow ends when activation happens.
Most apps that think they have an onboarding flow actually have a product tour. Their users reach the end of the welcome sequence, see the dashboard for the first time, and have no idea what to do next. That gap between the tour's end and the first real action is where churn begins.
The Three Formats: Checklists, Walkthroughs, and Spotlight Tooltips
Before you can build an onboarding flow, you need to know which formats to use at each stage. The three primary onboarding formats have different jobs and different levels of user interruption.
| Format | What it does | Interruption level | Best phase |
|---|---|---|---|
| Checklist | Shows users what actions remain and tracks progress | Very low | Activation |
| Guided walkthrough | Leads users through a specific sequence of actions step by step | Medium | Welcome → Activation |
| Spotlight tooltip | Highlights a specific UI element with contextual instruction | Low to medium | Feature discovery |

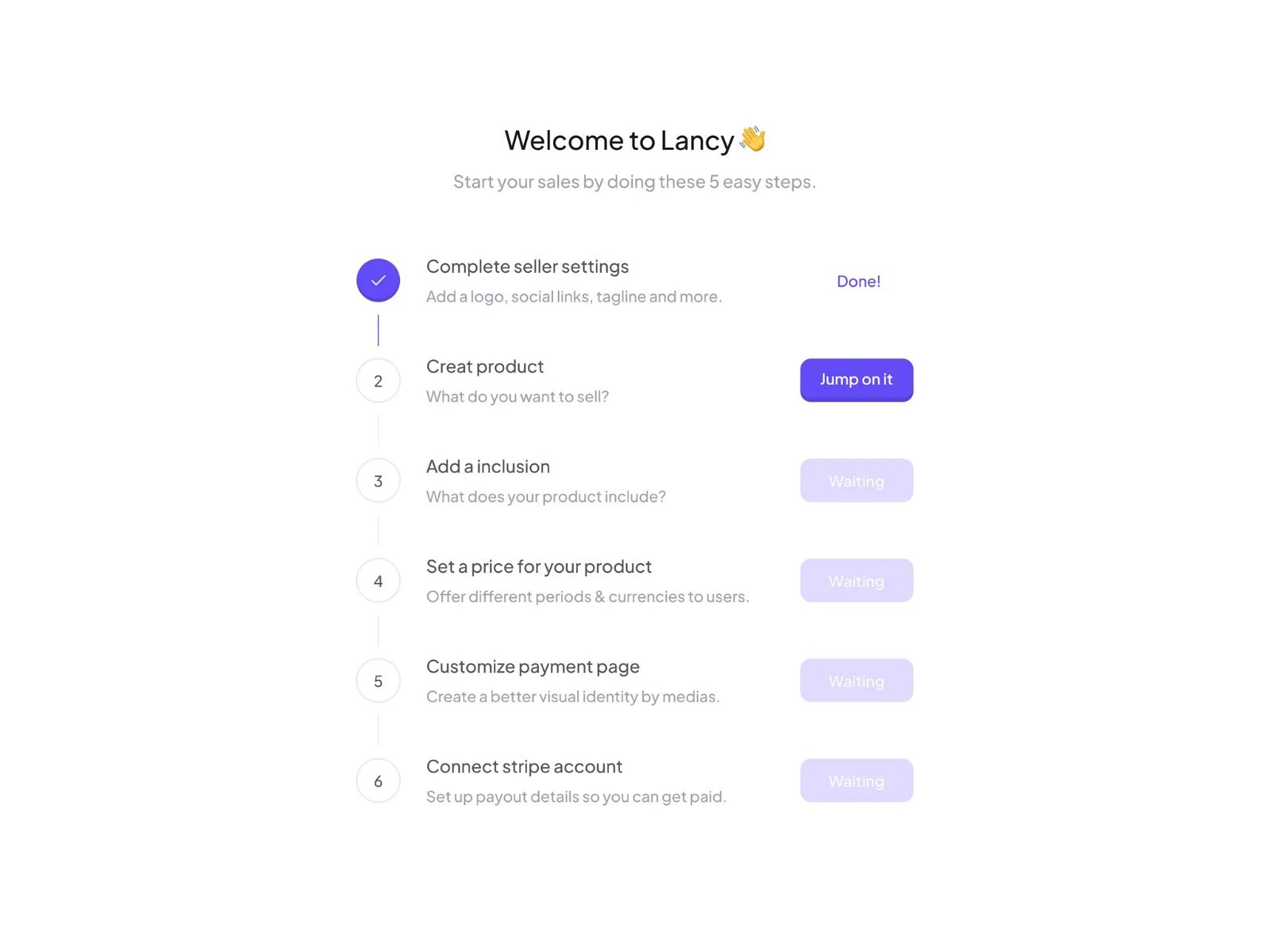

Checklists
An onboarding checklist is a persistent UI element that lists the key actions a user needs to complete, with progress tracking. Users who complete an onboarding checklist are 3x more likely to become paying customers than those who do not.
The reason checklists work is psychological. They make progress visible. Each completed item gives users a small win, which builds the motivation to reach the next item. The checklist also answers the question new users most often have in their first session: "What am I supposed to do now?"
Checklists should not list every possible action in the app. They should contain only the steps directly tied to activation. If your activation event is "complete first SIP setup," the checklist covers the four actions that lead to that event, not the twenty things a user could eventually do in your app.
Guided Walkthroughs

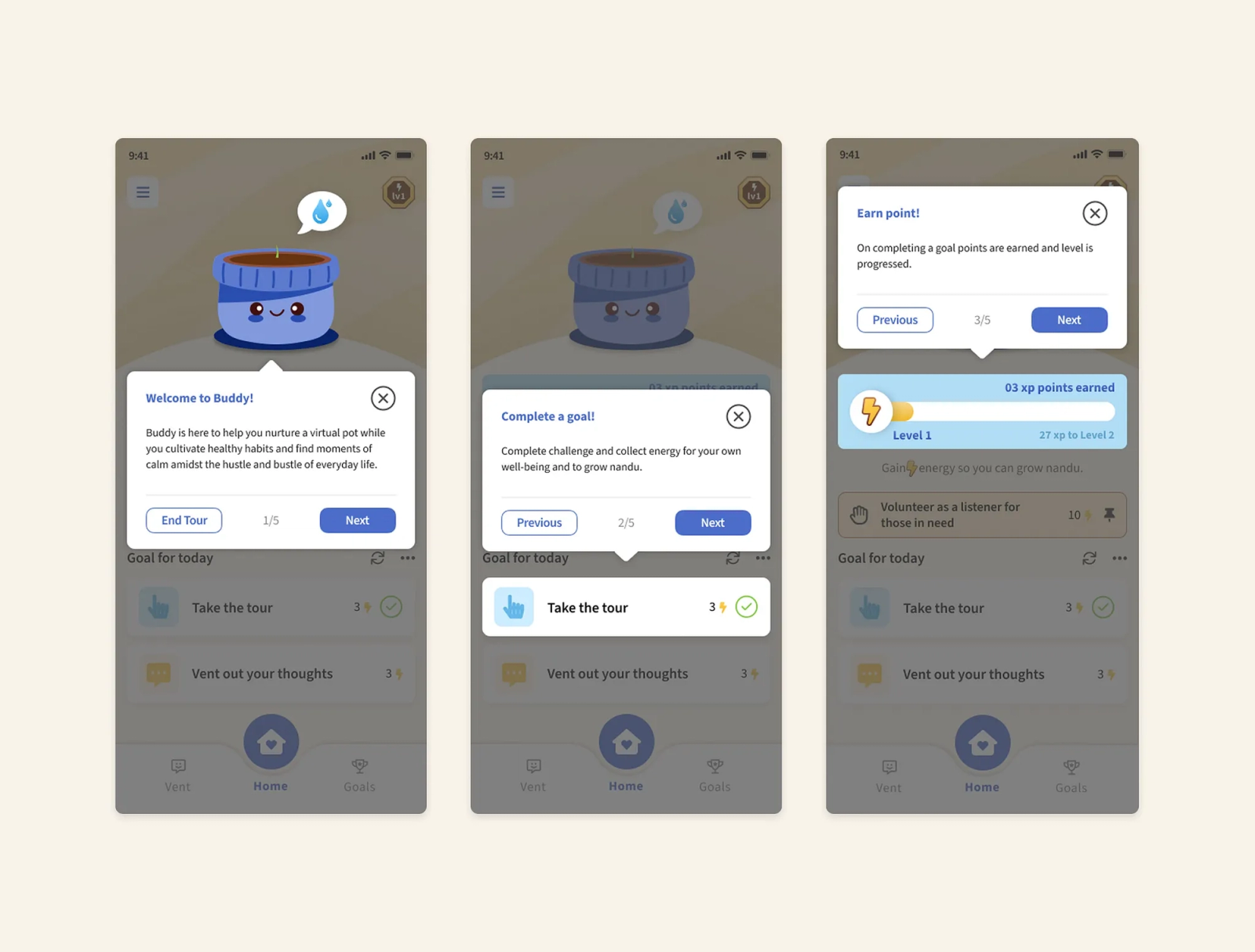

A guided walkthrough is a step-by-step interactive sequence that leads users through a specific path inside the app. Each step typically fires only after the user completes the previous one. The walkthrough does not just explain. It requires action.
Users retain features significantly better when they act rather than watch. A walkthrough that asks users to tap the button, fill the field, and submit the form produces better activation than a walkthrough that shows them screenshots of the same steps.
The right scope for a walkthrough is narrow. One outcome, one path, one activation event. Teams that try to cover everything in a single walkthrough produce flows that users abandon halfway through. The Rocketbots case makes the point clearly: after rebuilding their onboarding walkthrough around a single activation question ("how do I connect my first service?"), their activation rate doubled from 15% to 30%, conversion hit 5%, and MRR grew 300%.

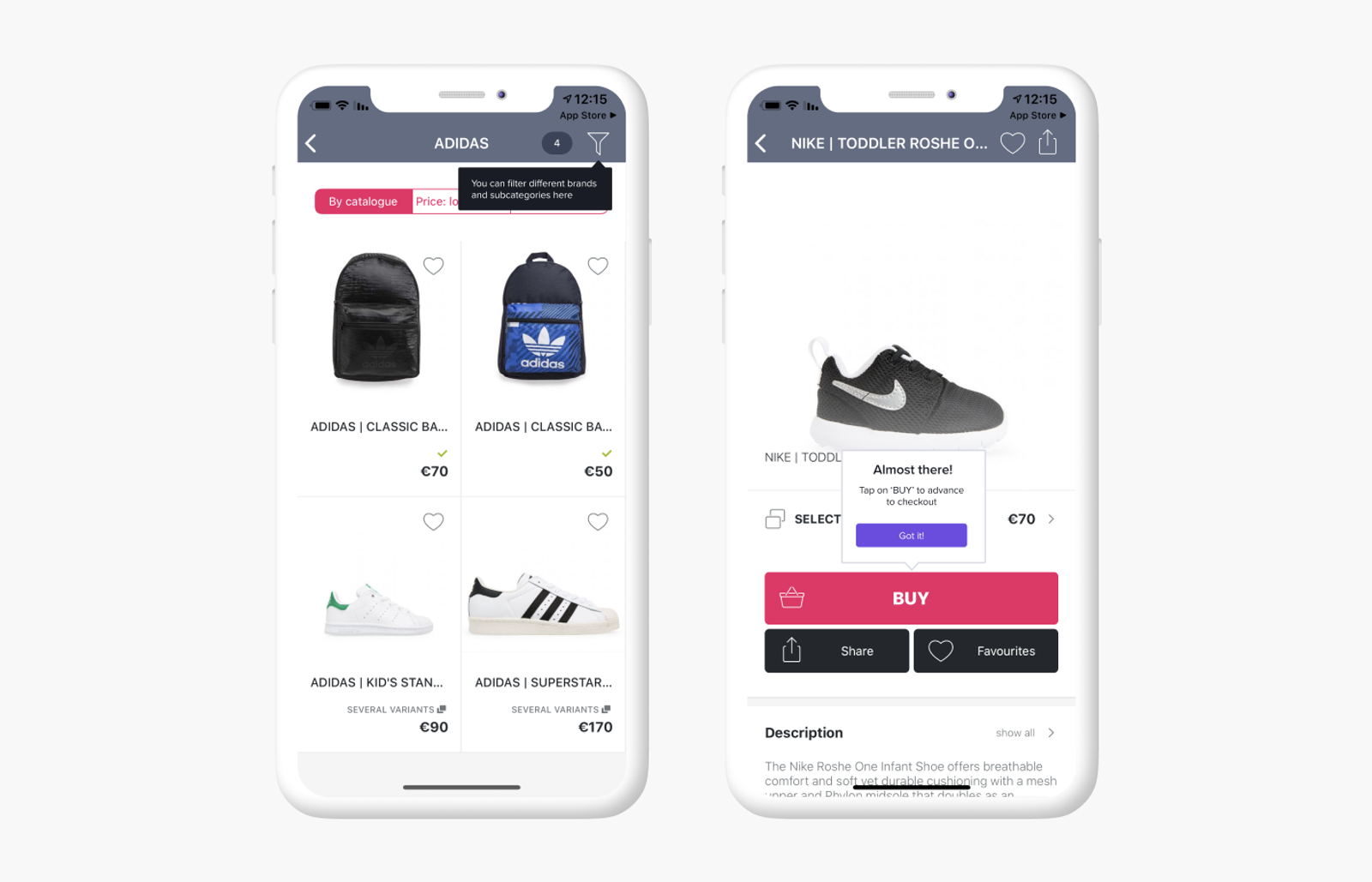

Spotlight Tooltips
A spotlight tooltip highlights a specific UI element by darkening the rest of the screen and placing a contextual message next to the element. It does not require the user to follow a sequence. It fires at a moment when the element is relevant, points at what matters, and either asks for a tap or explains what a feature does.
Mobile tooltips keep the learning state alive after the welcome flow ends. They are the right format for feature discovery after the initial activation sequence is complete, for announcing a new feature to existing users, and for surfacing secondary functionality to users who have already completed onboarding.
A common mistake is using spotlights during the first session before users have enough context to understand what they are being shown. A spotlight pointing at the "Invest" tab on session one, before the user has completed their first basic transaction, lands as noise. The same spotlight on session four, after two or three completed transactions, has context.

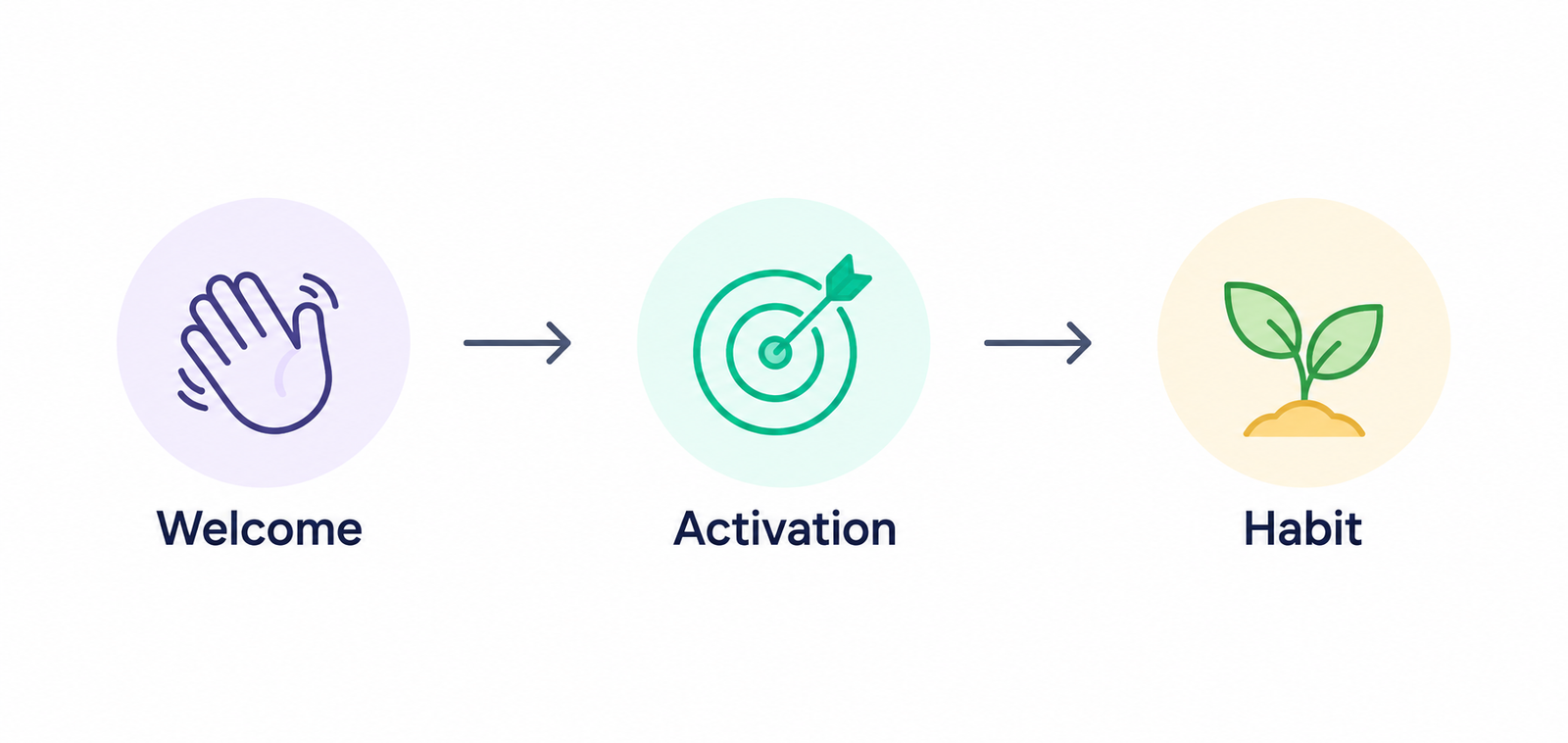

The Three Phases of an Onboarding Flow
A well-structured onboarding flow covers three sequential phases. Teams that skip the third phase tend to have good day-one activation but poor day-seven retention.
Phase 1: Welcome (Day 0, First Open)
The welcome phase has one job: establish the value the app delivers and reduce the friction required to get started. This is where you collect the minimum information needed to personalize the experience. No more.
The welcome phase covers sign-up, account creation, and any personalisation inputs like goals or preferences. It should not try to show the product. The user has not earned context yet. Get them through setup and into the product as fast as possible.
Products that communicate their core value within the first few screens see significantly lower early drop-off. The first screen of a banking app should not lead with a feature list. It should lead with a single benefit statement: "Send money to anyone in seconds."
Phase 2: Activation (Session 1 to First Meaningful Action)
Activation is the moment a user first experiences what your product is actually for. It is not completing the profile or verifying email. It is the specific action that delivers the value you promised.
A good onboarding flow focuses on one meaningful action: create your first task, send your first message, complete your first transaction. When that happens, onboarding has done its job.
The activation phase is where checklists and walkthroughs do their heaviest work. The walkthrough guides users through the steps to reach the activation event. The checklist tracks their progress. A spotlight tooltip fires if users reach a screen adjacent to the activation path but veer off course.
Products with a "quick win" built into onboarding retain 80% more users than those without. The quick win is a small moment of success on the path to full activation, something that takes 30 seconds and shows users the product is working for them. In a fintech app, that quick win might be linking a bank account. In a content app, it might be saving the first article.
Phase 3: Habit (Sessions 2 to 7)
Most onboarding guides stop at activation. The habit phase is where actual retention is won or lost.
A user who activated on day one but never returned is not retained. Retention requires repeated use, and repeated use requires a reason to come back. The habit phase of onboarding is about establishing that reason: a daily touchpoint, a progress metric, a reward, or a content feed that makes opening the app feel like a natural part of the user's routine.
In-app nudges, streak mechanics, and personalized home screen content all serve the habit phase. The goal is not to teach users anything new. It is to make returning feel like the obvious next step.
How to Build an In-App Onboarding Flow Without Code: Step by Step
Step 1: Define Your Activation Event
Before touching any UI, identify the specific action that makes a user activated. Look at your retention data. Find the one action that retained users consistently complete in the first session and churned users consistently do not. That action is your activation event.
Do not guess. Pull the data from your analytics tool, compare retained users against churned users, and validate that completing the action is actually correlated with returning.
Step 2: Map the Steps to Activation
List every action a user needs to complete to reach the activation event, starting from first open. This is your activation path. Count the steps. If there are more than six, look for steps you can remove or defer.
Limiting the number of steps, form fields, and additional activities a user must complete to reach sign-up and activation is one of the highest-leverage improvements you can make to an onboarding flow. Every unnecessary step is a drop-off point.
Step 3: Choose a Format for Each Step
Map each step on the activation path to an onboarding format. Welcome screens and modal prompts handle the sign-up and preference phases. A guided walkthrough covers the core activation sequence. Spotlight tooltips handle feature discovery at moments that go off the main path.
The rule is: use the least interruptive format that accomplishes the goal. A tooltip is almost always preferable to a spotlight. A spotlight is almost always preferable to a modal. Reach for interruption only when you need acknowledgment or immediate action.

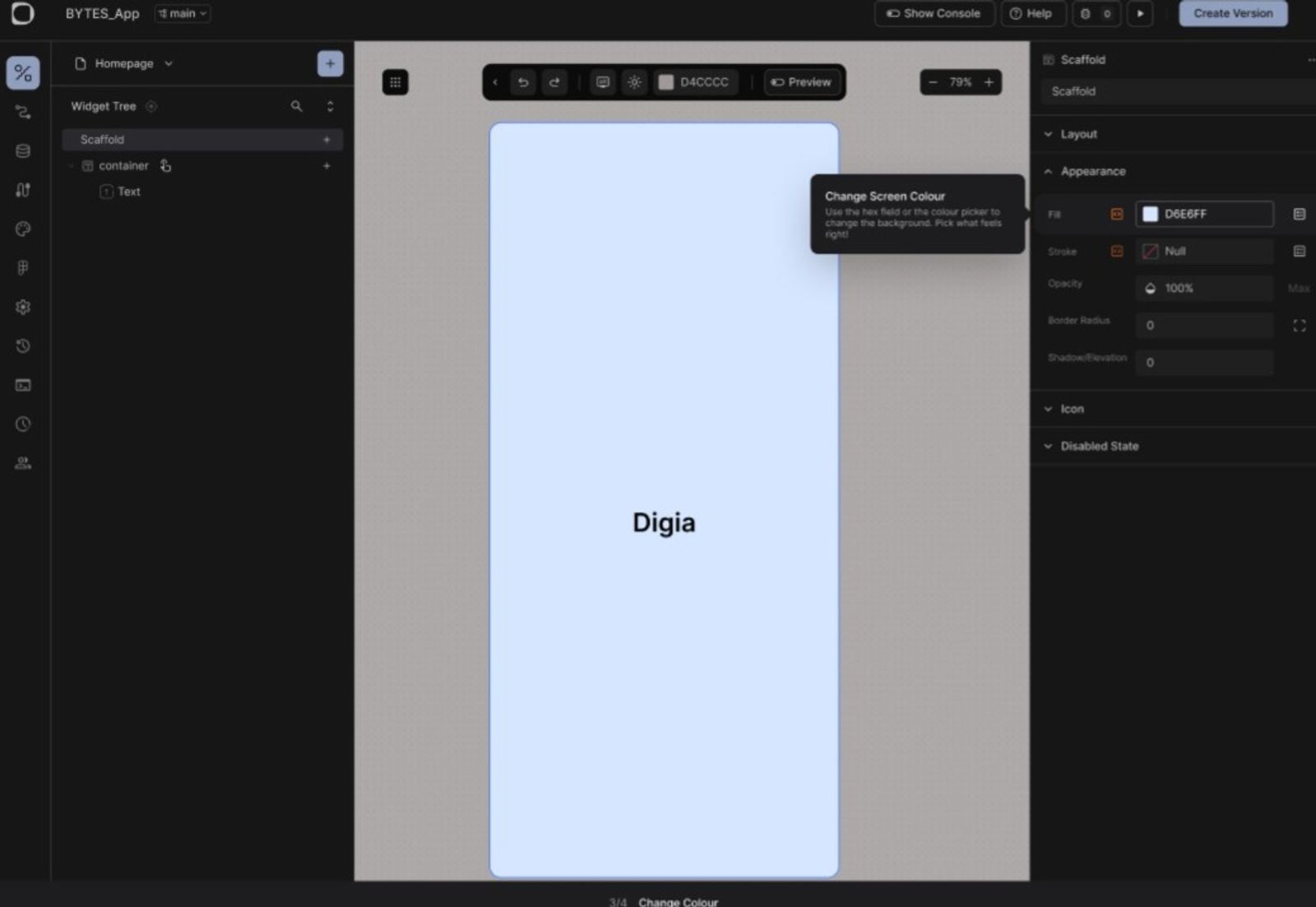

Step 4: Build the Flow in a No-Code Tool
A no-code onboarding builder lets your growth team build, test, and iterate on flows without opening an engineering ticket. Digia Engage's Nudge Builder handles tooltips, spotlights, bottom sheets, guided walkthroughs, and multi-step flows from one dashboard, with triggers that fire in under 100ms. The SDK integration takes around 20 minutes. The first campaign can be live within 24 hours.
Configure triggers for each step. Event-based triggers are the most precise option. A walkthrough step should fire only after the user completes the preceding action, not on a timer. Checklists should update in real time as actions are completed.
Step 5: Add a Frequency Cap and Dismissal Logic
An onboarding flow that fires every session, even after a user has already activated, is friction. Set a completion condition: once a user reaches the activation event, the onboarding flow stops. Add a frequency cap so any given step can fire at most twice before it stops appearing.
Also account for users who dismiss without completing. A spotlight tooltip that gets dismissed should not refire on the next screen open. Give dismissed elements a cooldown period of at least 48 hours before resurfacing.
Step 6: Measure and Iterate
Track four metrics for every onboarding flow: step completion rate (what percentage of users complete each step), drop-off rate (where in the flow do users exit), activation rate (what percentage reach the activation event), and day-7 retention for users who activated versus those who did not.
A/B test individual steps rather than the entire flow at once. Change one variable per test: the copy in a tooltip, the number of steps in a walkthrough, the position of a checklist. Measure activation rate as the primary metric.
Real Case: How a Fintech App Structures Day 1
BharatPe's approach to merchant onboarding offers a concrete example of what structured activation looks like in practice. The team analyzed user drop-offs through funnel data, identified the specific steps where merchants left before completing KYC, and redesigned the journey to reduce friction at each exit point. They added vernacular language support and personalized the experience using user attributes. The result was a 22% increase in weekly merchant registration.
A fintech app like Fi Money or BharatPe has a harder onboarding challenge than most apps. KYC requirements, bank account linking, and regulatory verification steps introduce mandatory friction that cannot be removed. The onboarding strategy in this context is about sequencing that friction correctly.
The Day 1 experience for a fintech app should follow this structure:
First, lead with the value before the compliance requirements. Show users what they will be able to do once they are verified. A user who can picture the outcome is more likely to tolerate the verification steps.
Second, break the KYC flow into the smallest possible units. Each screen should collect exactly one piece of information. A progress indicator should tell the user how many steps remain. If verification takes more than one session to complete, save progress and give users a clear path back.
Third, celebrate the first successful action immediately. The first successful UPI send, the first savings goal set, the first transaction categorized: treat these as milestone moments. A spotlight or a brief animation confirms that the product is working and gives users a reason to return tomorrow.
This sequence, value first, friction in small units, quick win on completion, is the pattern that fintech apps with strong activation rates share.
Key Metrics to Track
Tracking the right numbers tells you whether your onboarding flow is working or where it is breaking.
Onboarding completion rate is the percentage of users who reach the activation event within a defined window (day 1 or day 30). This is the headline metric. The global baseline is 8.4%. Anything above 15% in most categories represents a well-optimized flow.
Step-level drop-off rate shows where users exit the flow. A high drop-off at a specific step points to friction: too much information, a confusing UI element, or a required action that users do not understand.
Time to activation measures how long it takes from first open to the activation event. Shorter is better. If users who activate within the first session retain at a higher rate than users who activate on day 2 or later, that is a signal to reduce the number of steps between sign-up and first value.
Day-7 retention for activated versus non-activated users is the metric that tells you whether your activation event is the right one. If retained users consistently complete a specific action and churned users consistently do not, you have identified your true activation event. If retention rates are similar regardless of activation, the event you are targeting is not the right proxy.
Key Takeaways
An in-app onboarding flow is a structured sequence designed to get users to a specific activation event. A product tour is a guided walkthrough of features. Both can be useful, but they serve different purposes and should not be confused.
The three onboarding formats, checklists, guided walkthroughs, and spotlight tooltips, each handle a different phase of the user journey. Checklists give users a visible progress path toward activation. Walkthroughs lead users through the activation sequence itself. Spotlight tooltips handle contextual feature discovery after the core sequence is complete.
Onboarding has three phases: welcome, activation, and habit. Most teams invest in the first two and neglect the third. Day-7 and day-14 retention are won in the habit phase, not the welcome flow.
Building an onboarding flow without code requires defining the activation event first, mapping the path to get there, choosing the right format for each step, setting completion conditions and frequency caps, and measuring step-level performance to find where users exit.
Fintech apps face mandatory onboarding friction from KYC and verification requirements. The strategy is sequencing, leading with value before compliance, breaking the compliance flow into the smallest possible units, and celebrating the first successful action immediately.
